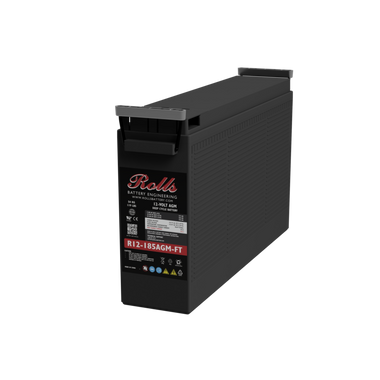

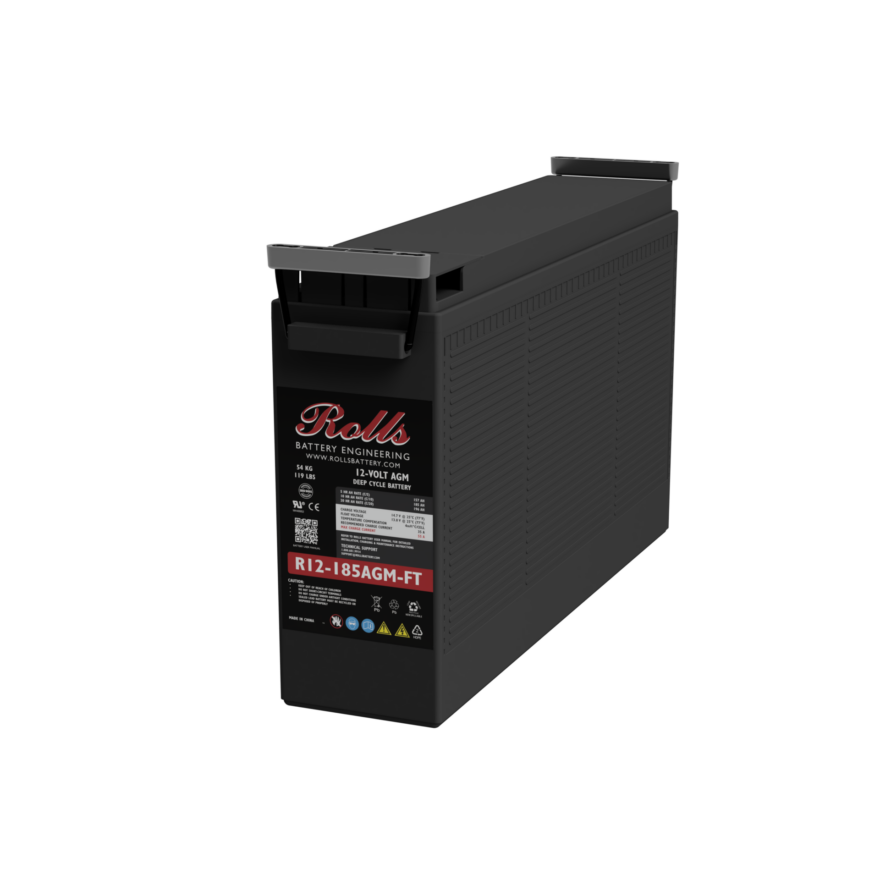

Rolls Surrette R12-185AGM-FT - Quote Item
Hover over image to zoom
Rolls Battery
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
R12-185AGM-FT
Product Description
Series: AGM-R
Volts: 12V
Terminal Type: F14(M8)
Included Hardware: M8 stainless bolts & washers
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 35 A
Maximum Charge Current: 55 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 4 mΩ
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 20 Hour Rate | 196 AH | 9.8 A |
| @ 10 Hour Rate | 185 AH | 18.5 A |
| @ 5 Hour Rate | 157 AH | 31.4 A |
| Cut Off Voltage | Constant Current Discharge | |||||||
|---|---|---|---|---|---|---|---|---|
| 1.8 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr | 10 hr |
| 97.9 | 58.7 | 46.3 | 36.7 | 31.4 | 22.1 | 18.5 | 17.2 | |
| Specifications | ||
|---|---|---|
| Weight | 54 kg | 119 lbs |
| Length | 560 mm | 22.1" |
| Width | 125 mm | 4.92" |
| Height Incl. Term. | 316 mm | 12.4" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
Made In Canada
Warranty Information
https://support.rollsbattery.com/en/support/solutions/691
