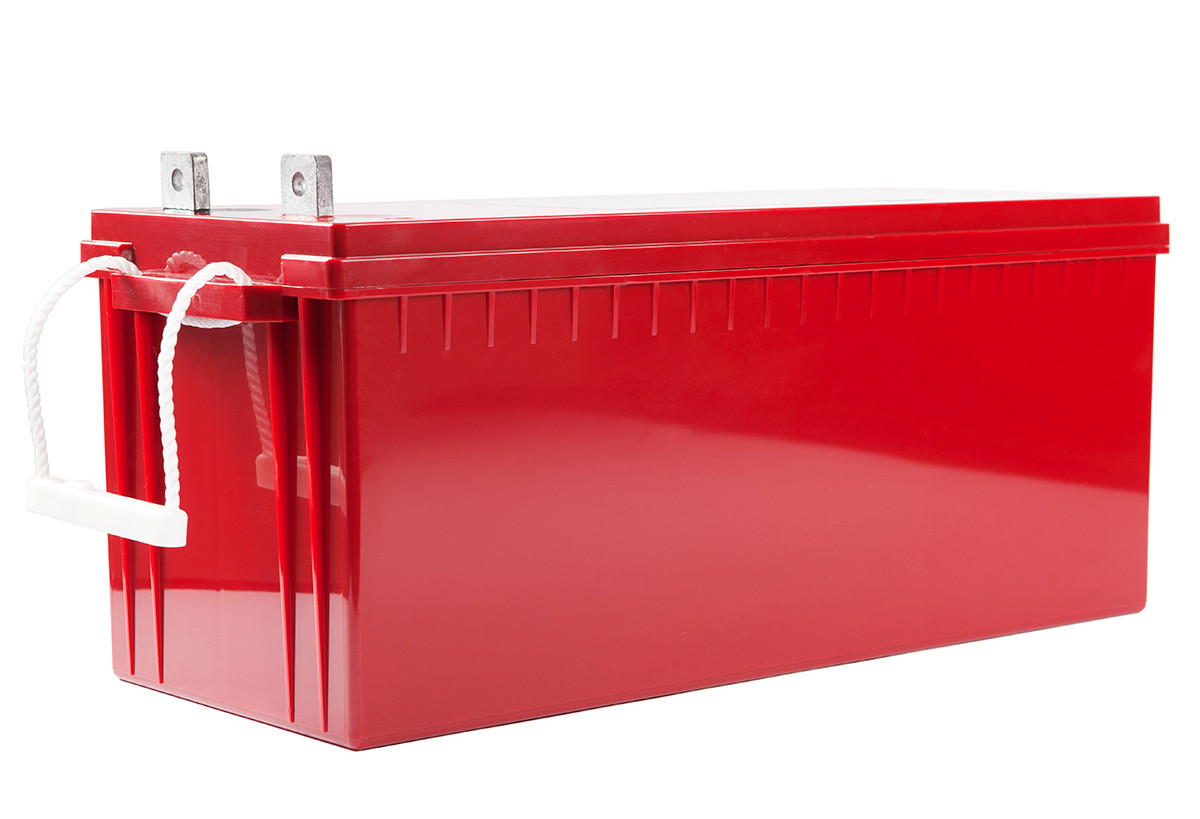

Rolls Surrette S12-230AGM-RE - Quote Item
Hover over image to zoom
Product Description
Series: AGM-S
Volts: 12V
Cells: 6
Terminal Type: L6
Included Hardware: M8 stainless bolts & washers
Size & Thread: M8
Warranty: See Warranty Terms
Design: 4D
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 40 A
Maximum Charge Current: 65 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 2.3 mΩ
Cold Crank Amps (CCA) 0°F / -18°C: 1200
Marine Crank Amps (MCA) 32°F / 0°C: 1425
Reserve Capacity (RC @ 25A): 400 Minutes
Reserve Capacity (RC @ 75A): 105 Minutes
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 230 AH | 2.3 A |
| @ 20 Hour Rate | 210 AH | 10.5 A |
| @ 10 Hour Rate | 189 AH | 18.9 A |
| @ 5 Hour Rate | 172 AH | 34.4 A |
| Cut Off Voltage | Constant Current Discharge | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| VPC | 1 hr | 2 hr | 3 hr | 5 hr | 8 hr | 10 hr | 6 hr | 8 hr | 10 hr |
| 116 | 64.3 | 47.6 | 33.3 | 22.9 | 18.9 | 29 | 23.4 | 19.5 | |
| Specifications | ||
|---|---|---|
| Weight | 61.5 kg | 135.5 lbs |
| Length | 530 mm | 20.87" |
| Width | 209 mm | 8.23" |
| Height Incl. Term. | 240 mm | 9.45" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
Warranty Information
