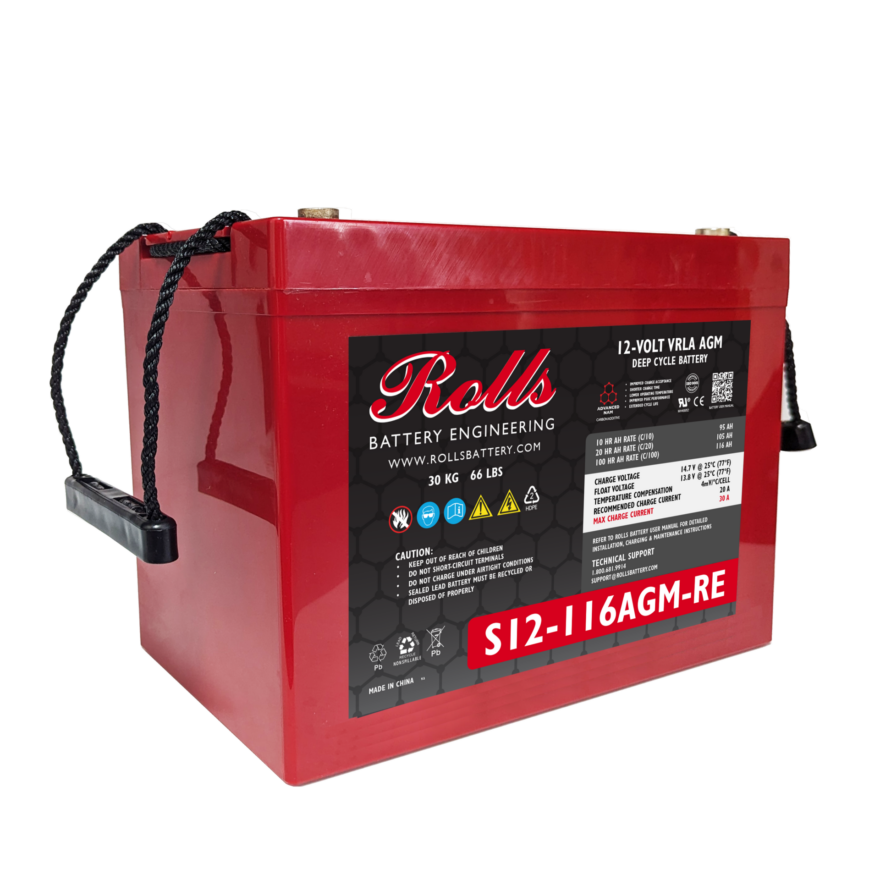

Series: AGM-S
Volts: 12
Cells: 6
Terminal Type: F12(M8) and TP08 Adapter [+21mm]
Included Hardware: M8 stainless bolts & washers & TP08 adapter
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 20 A
Maximum Charge Current: 35 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 4 mΩ
Cold Crank Amps (CCA) 0°F / -18°C: 680
Marine Crank Amps (MCA) 32°F / 0°C: 900
Reserve Capacity (RC @ 25A): 180 Minutes
Reserve Capacity (RC @ 75A): 43 Minutes
Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
---|---|---|---|---|
102% | 100% | 85% | 65% |
Hour Rate | Capacity / AMP Hour | Current / AMPs |
---|---|---|
@ 100 Hour Rate | 116 AH | 1.16 A |
@ 20 Hour Rate | 105 AH | 5.25 A |
@ 10 Hour Rate | 95 AH | 9.5 A |
@ 5 Hour Rate | 86 AH | 17.2 A |
Cut Off Voltage | Constant Current Discharge | ||||||
---|---|---|---|---|---|---|---|
1.75 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr |
55.5 | 32.9 | 25.8 | 17.5 | 12.2 | 10.1 | 9.62 |
Specifications | ||
---|---|---|
Weight | 30 kg | 66 lbs |
Length | 307 mm | 12.09" |
Width | 169 mm | 6.65" |
Height Incl. Term. | 215 mm | 8.46" |
Container | ABS | |
Cover | ABS | |
Handles | Rope / Plastic Handle | |
|
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
