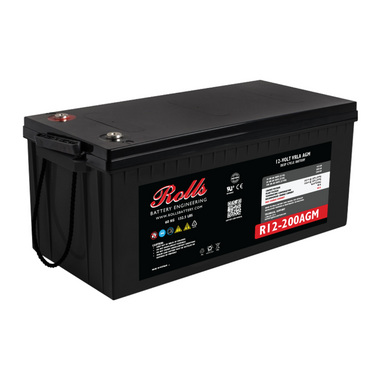

Rolls Surrette R12-200AGM - Quote Item
Hover over image to zoom
Product Description
Series: AGM-R
Volts: 12V
Terminal Type: F10(M8) and TP08 Adapter [+21mm]
Included Hardware: M8 stainless bolts & washers & TP08 adapter
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 40 A
Maximum Charge Current: 60 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Cold Crank Amps (CCA) 0°F / -18°C: 1100
Marine Crank Amps (MCA) 32°F / 0°C: 1380
Reserve Capacity (RC @ 25A): 380 Minutes
Reserve Capacity (RC @ 75A): 100 Minutes
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 220 AH | 2.2 A |
| @ 20 Hour Rate | 200 AH | 10 A |
| @ 10 Hour Rate | 162 AH | 16.2 A |
| @ 5 Hour Rate | 144 AH | 28.8 A |
| Cut Off Voltage | Constant Current Discharge | |||||||
|---|---|---|---|---|---|---|---|---|
| VPC | 1 hr | 2 hr | 3 hr | 5 hr | 8 hr | 10 hr | 10 hr | 10 hr |
| 103 | 55.1 | 40.8 | 28.8 | 19.6 | 16.2 | 18.5 | 17.2 | |
| Specifications | ||
|---|---|---|
| Weight | 60 kg | 132 lbs |
| Length | 522 mm | 20.55" |
| Width | 240 mm | 9.45" |
| Height Incl. Term. | 225 mm | 8.86" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
Warranty Information
https://support.rollsbattery.com/en/support/solutions/691
