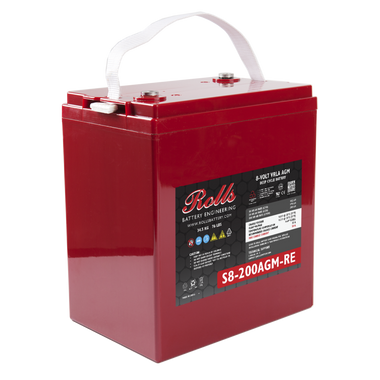

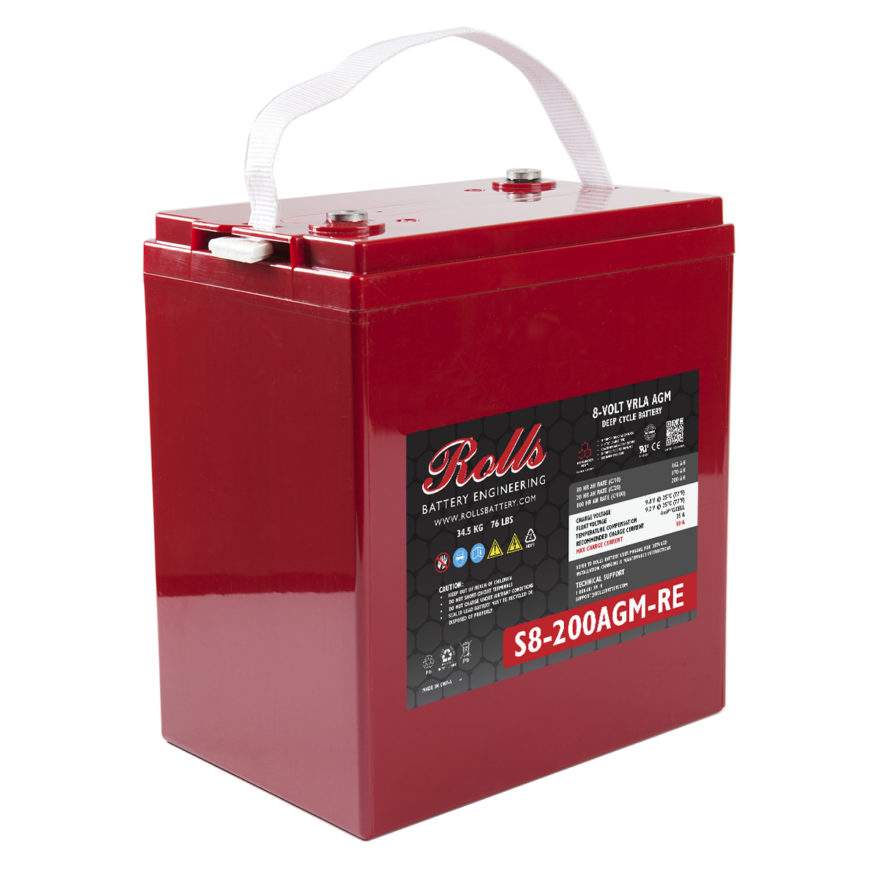

Series: AGM-S
Volts: 8V
Cells: 4
Terminal Type: F14(M8) and TP08 Adapter [+21mm]
Included Hardware: M8 stainless bolts & washers & TP08 adapter
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
Recommended Charge Current: 35 A
Maximum Charge Current: 50 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 3.2 mΩ
Cold Crank Amps (CCA) 0°F / -18°C: 680
Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
---|---|---|---|---|
102% | 100% | 85% | 65% |
Hour Rate | Capacity / AMP Hour | Current / AMPs |
---|---|---|
@ 100 Hour Rate | 200 AH | 2.0 A |
@ 20 Hour Rate | 170 AH | 8.5 A |
@ 10 Hour Rate | 162 AH | 16.2 A |
@ 5 Hour Rate | 150 AH | 29.9 A |
Cut Off Voltage | Constant Current Discharge | |||||||
---|---|---|---|---|---|---|---|---|
VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 6 hr | 8 hr | 10 hr |
95 | 57.2 | 43.9 | 35.1 | 29.9 | 25 | 19.9 | 16.6 |
Specifications | ||
---|---|---|
Weight | 34.5 kg | 76 lbs |
Length | 260 mm | 10.24" |
Width | 182 mm | 7.17" |
Height Incl. Term. | 300 mm | 11.81" |
Container | ABS | |
Cover | ABS | |
Handles | Rope / Plastic Handle | |
|
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
