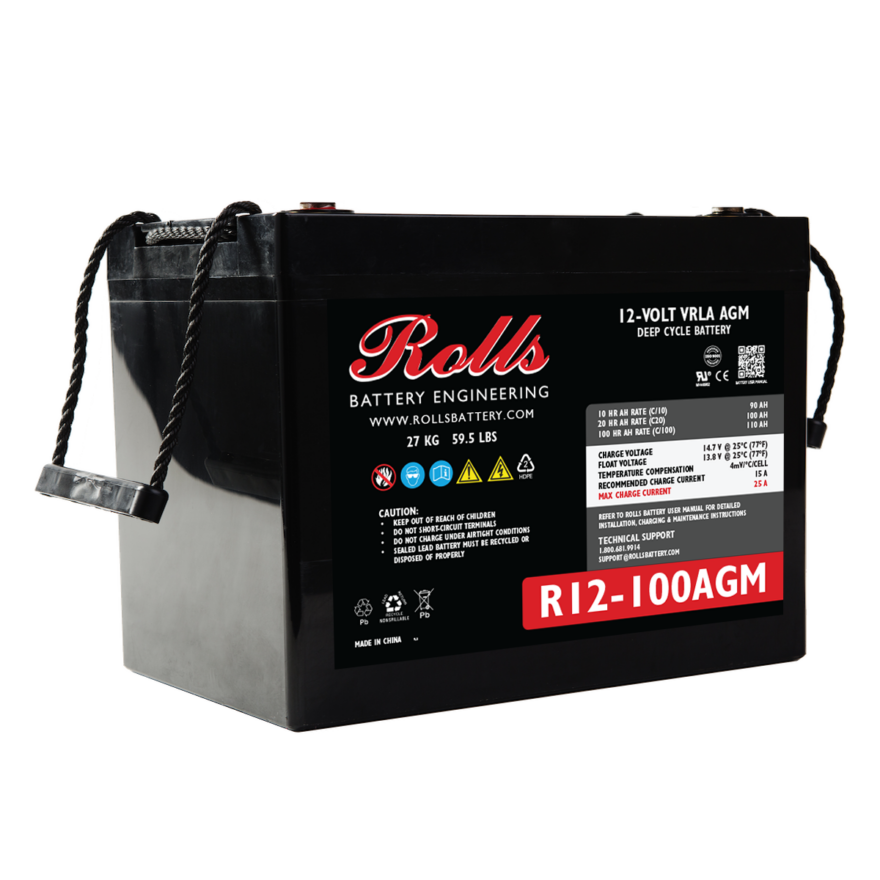

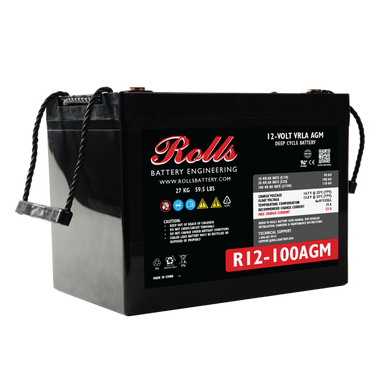

Rolls Surrette R12-100AGM - Quote Item
Hover over image to zoom
Product Description
Series: AGM-R
Volts: 12
Cells: 6
Terminal Type: F12(M8) and TP08 Adapter [+21mm]
Included Hardware: M8 stainless bolts & washers & TP08 adapter
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 20 A
Maximum Charge Current: 30 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Cold Crank Amps (CCA) 0°F / -18°C: 600
Marine Crank Amps (MCA) 32°F / 0°C: 850
Reserve Capacity (RC @ 25A): 170 Minutes
Reserve Capacity (RC @ 75A): 40 Minutes
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 110 AH | 1.1 A |
| @ 20 Hour Rate | 100 AH | 5 A |
| @ 10 Hour Rate | 90 AH | 9 A |
| @ 5 Hour Rate | 82 AH | 16.40 A |
| Cut Off Voltage | Constant Current Discharge | ||||||
|---|---|---|---|---|---|---|---|
| 1.75 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr |
| 55 | 32.72 | 25 | 20.21 | 17.22 | 11.58 | 9.62 | |
| Specifications | ||
|---|---|---|
| Weight | 27 kg | 59.5 lbs |
| Length | 307 mm | 12.09" |
| Width | 169 mm | 6.65" |
| Height Incl. Term. | 2150 mm | 8.46" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
