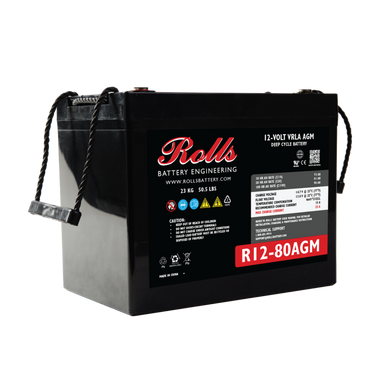

Rolls Surrette R12-80AGM - Quote Item
Hover over image to zoom
Product Description
Series: AGM-R
Volts: 12
Cells: 6
Terminal Type: F12(M8) and TP08 Adapter [+21mm]
Included Hardware: M8 stainless bolts & washers & TP08 adapter
Size & Thread: M8
Warranty: See Warranty Terms
Design: Grp24
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 15 A
Maximum Charge Current: 25 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 7 mΩ
Cold Crank Amps (CCA) 0°F / -18°C: 500
Marine Crank Amps (MCA) 32°F / 0°C: 750
Reserve Capacity (RC @ 25A): 145 Minutes
Reserve Capacity (RC @ 75A): 30 Minutes
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 90 AH | 0.9 A |
| @ 20 Hour Rate | 81 AH | 4.05 A |
| @ 10 Hour Rate | 73 AH | 7.3 A |
| @ 5 Hour Rate | 67 AH | 13.40 A |
| Cut Off Voltage | Constant Current Discharge | ||||||
|---|---|---|---|---|---|---|---|
| 1.75 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr |
| 40.6 | 22.8 | 17.1 | 13.4 | 11.2 | 8.2 | 6.8 | |
| Specifications | ||
|---|---|---|
| Weight | 23 kg | 50.5 lbs |
| Length | 260 mm | 10.24" |
| Width | 169 mm | 6.65" |
| Height Incl. Term. | 220 mm | 8.66" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
