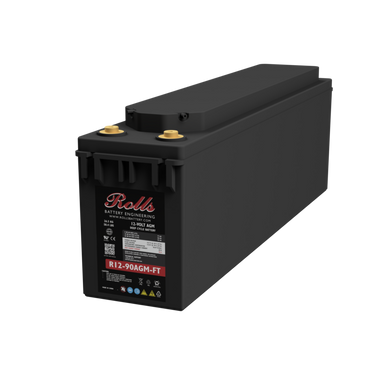

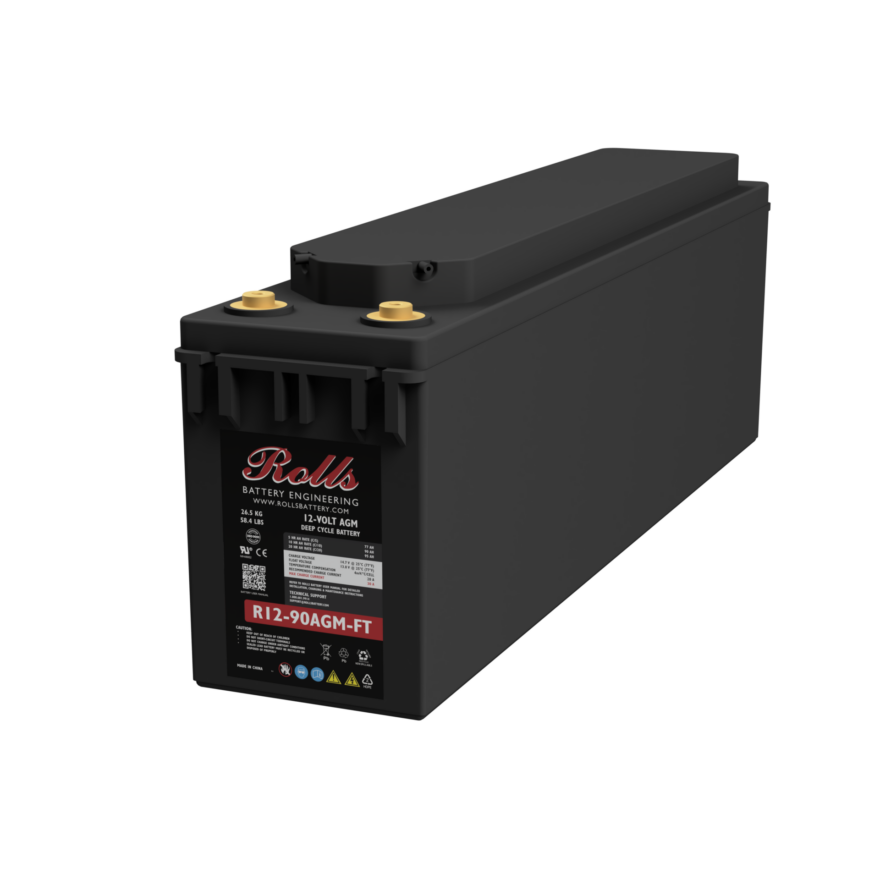

Rolls Surrette R12-90AGM-FT - Quote Item
Hover over image to zoom
Product Description
Series: AGM-R
Volts: 12
Terminal Type: F6(M8)
Included Hardware: M8 stainless bolts & washers
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 20 A
Maximum Charge Current: 30 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 5.8 mΩ
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 20 Hour Rate | 95 AH | 4.75 A |
| @ 10 Hour Rate | 90 AH | 9.0 A |
| @ 5 Hour Rate | 77 AH | 15.4 A |
| Cut Off Voltage | Constant Current Discharge | ||||||
|---|---|---|---|---|---|---|---|
| 1.75 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr |
| 47.6 | 28.5 | 22.5 | 17.9 | 15.3 | 10.8 | 9 | |
| Specifications | ||
|---|---|---|
| Weight | 26.5 kg | 58.5 lbs |
| Length | 562 mm | 22.1" |
| Width | 114 mm | 4.49" |
| Height Incl. Term. | 188 mm | 7.40" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
Made In Canada
Warranty Information
https://support.rollsbattery.com/en/support/solutions/691
