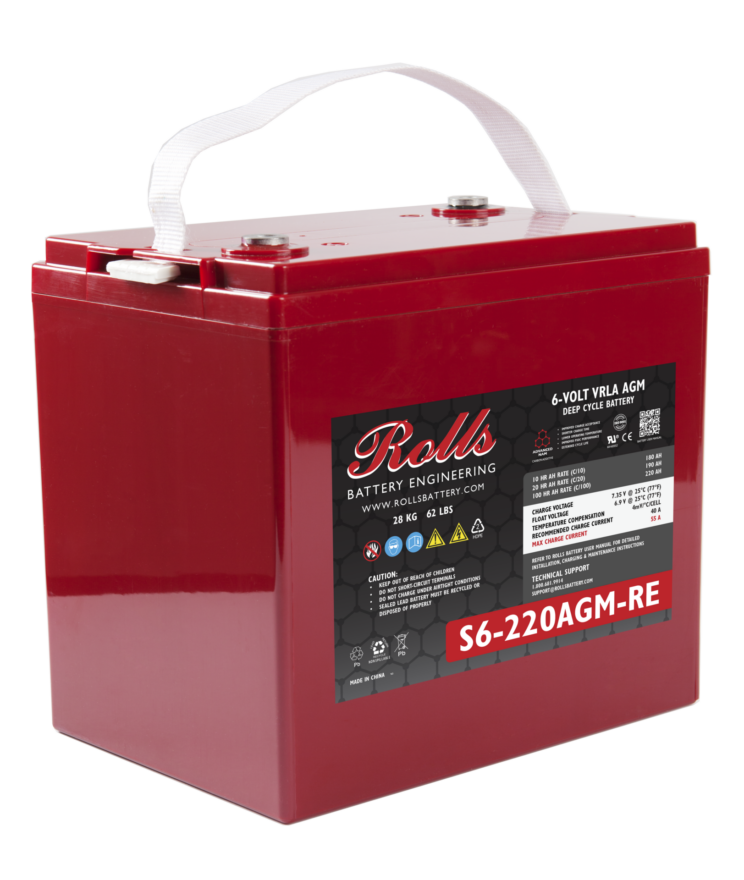

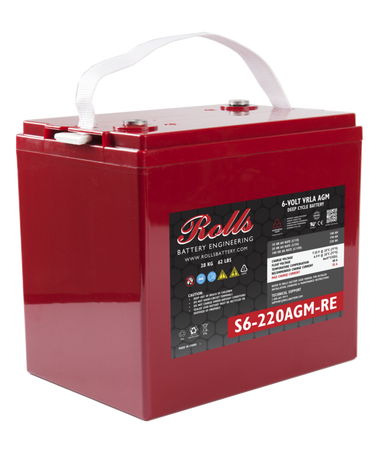

Series: AGM-S
Volts: 6V
Cells: 3
Terminal Type: F12(M8) and TP08 Adapter [+21mm]
Included Hardware: M8 stainless bolts & washers & TP08 adapter
Size & Thread: M8
Warranty: See Warranty Terms
Design: G27
Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
Recommended Charge Current: 40 A
Maximum Charge Current: 55 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 1.3 mΩ
Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
---|---|---|---|---|
102% | 100% | 85% | 65% |
Hour Rate | Capacity / AMP Hour | Current / AMPs |
---|---|---|
@ 100 Hour Rate | 220 AH | 2.20 A |
@ 20 Hour Rate | 190 AH | 9.50 A |
@ 10 Hour Rate | 180 AH | 18.0 A |
@ 5 Hour Rate | 175 AH | 35.0 A |
Cut Off Voltage | Constant Current Discharge | |||||||
---|---|---|---|---|---|---|---|---|
1.75 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 6 hr | 8 hr | 10 hr |
94.4 | 56 | 43.9 | 34.8 | 29.7 | 26 | 20.7 | 17.2 |
Specifications | ||
---|---|---|
Weight | 28 kg | 62 lbs |
Length | 307 mm | 12.09" |
Width | 169 mm | 6.65" |
Height Incl. Term. | 225 mm | 8.86" |
Container | ABS | |
Cover | ABS | |
Handles | Rope / Plastic Handle | |
|
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
