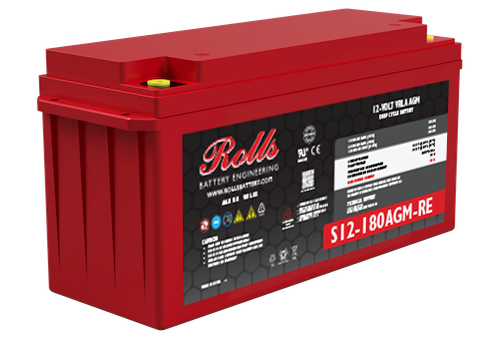

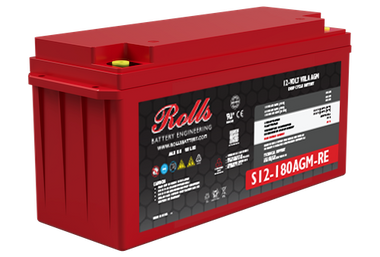

Rolls Surrette S12-180AGM-RE - Quote Item
Product Description
Series: AGM-S
Volts: 12
Cells: 6
Terminal Type: M8
Included Hardware: M8 stainless bolts & washers
Size & Thread: M8
Warranty: See Warranty Terms
Charge Voltage Range: 14.7V @ 25°C (77°F)
Float Voltage Range: 13.8V @ 25°C (77°F)
Recommended Charge Current: 35 A
Maximum Charge Current: 45 A
Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
Internal Resistance: 4.4 mΩ
Cold Crank Amps (CCA) 0°F / -18°C: 715
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 180 AH | 1.8 A |
| @ 20 Hour Rate | 163 AH | 8.15 A |
| @ 10 Hour Rate | 154 AH | 15.4 A |
| @ 5 Hour Rate | 138 AH | 27.6 A |
| Cut Off Voltage | Constant Current Discharge | ||||||
|---|---|---|---|---|---|---|---|
| 1.75 VPC | 1 hr | 2 hr | 3 hr | 5 hr | 8 hr | 10 hr | 8 min |
| 82.5 | 49.1 | 38.7 | 26.2 | 17.9 | 14.4 | 15 | |
| Specifications | ||
|---|---|---|
| Weight | 44.5 kg | 98 lbs |
| Length | 483 mm | 19.01" |
| Width | 170 mm | 6.69" |
| Height Incl. Term. | 241 mm | 9.49" |
| Container | ABS | |
| Cover | ABS | |
| Handles | Rope / Plastic Handle | |
|
||
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
Made In Canada
