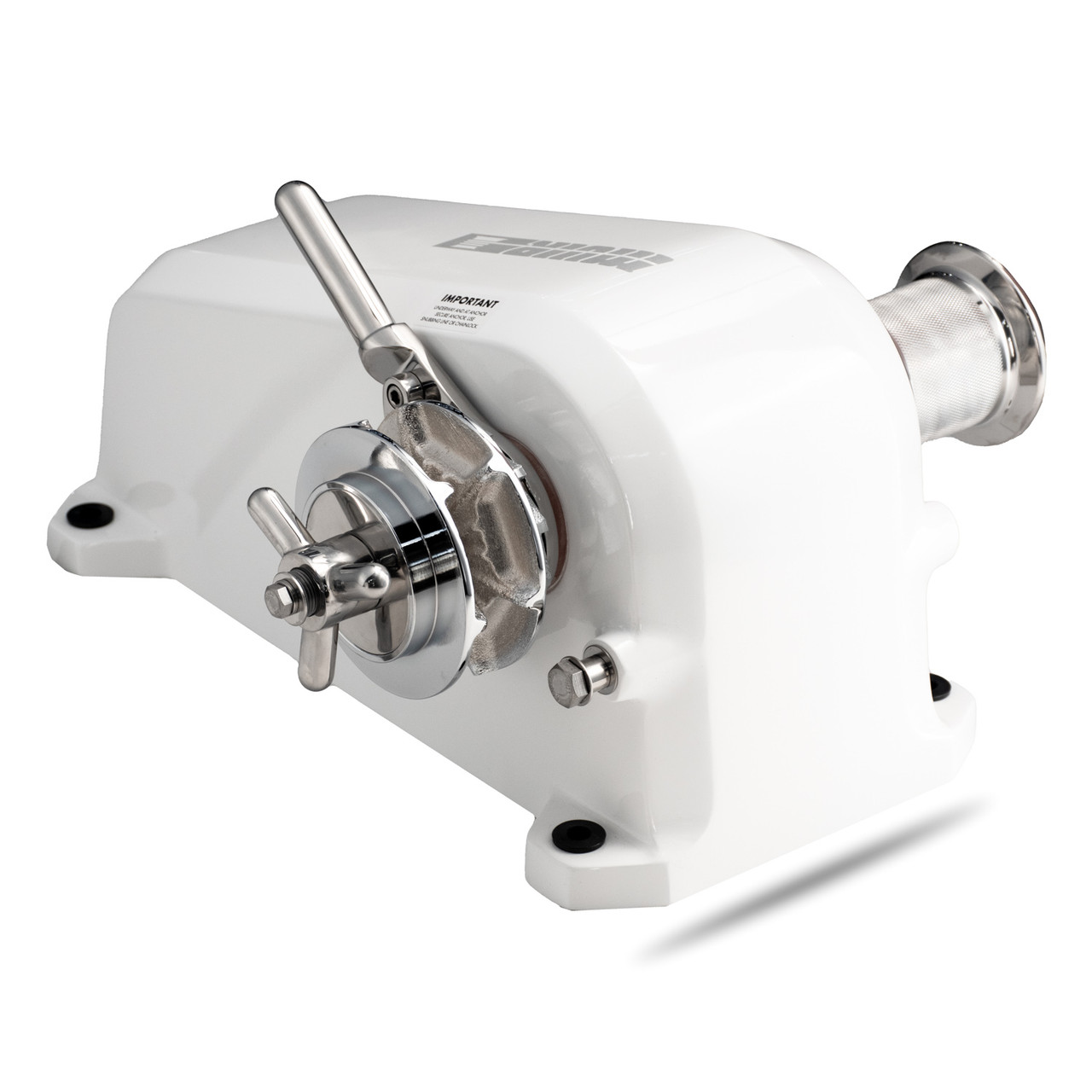

Muir HR3500 Jaguar Horizontal Windlasses - Quote Only
Hover over image to zoom
Product Description
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Chain pipe & peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Included in the package:
Circuit Breaker & Mounting Pannel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs & fasteners
Manual Override System (MORS)
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 14-20m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
150A/100A (12/24V) |
| Motor (Watts) | 1700Watts |
| Amps Workload | 185A/90A (12/24V) |
| Hydraulic Pressure | 10MPa |
| Hydraulic Flow | 28L/min |
| Max Load | 1650Kg |
| Workload | 550Kg |
| Max Line Speed | 28m/min |
| Compatible Chain Sizes | 8 mm (5/16“), 10 mm (3/8”), 13 mm (1/2”) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 58Kg |
| Net Weight Hydraulic | 57Kg |
| Manual Operation | MORS (std) |
