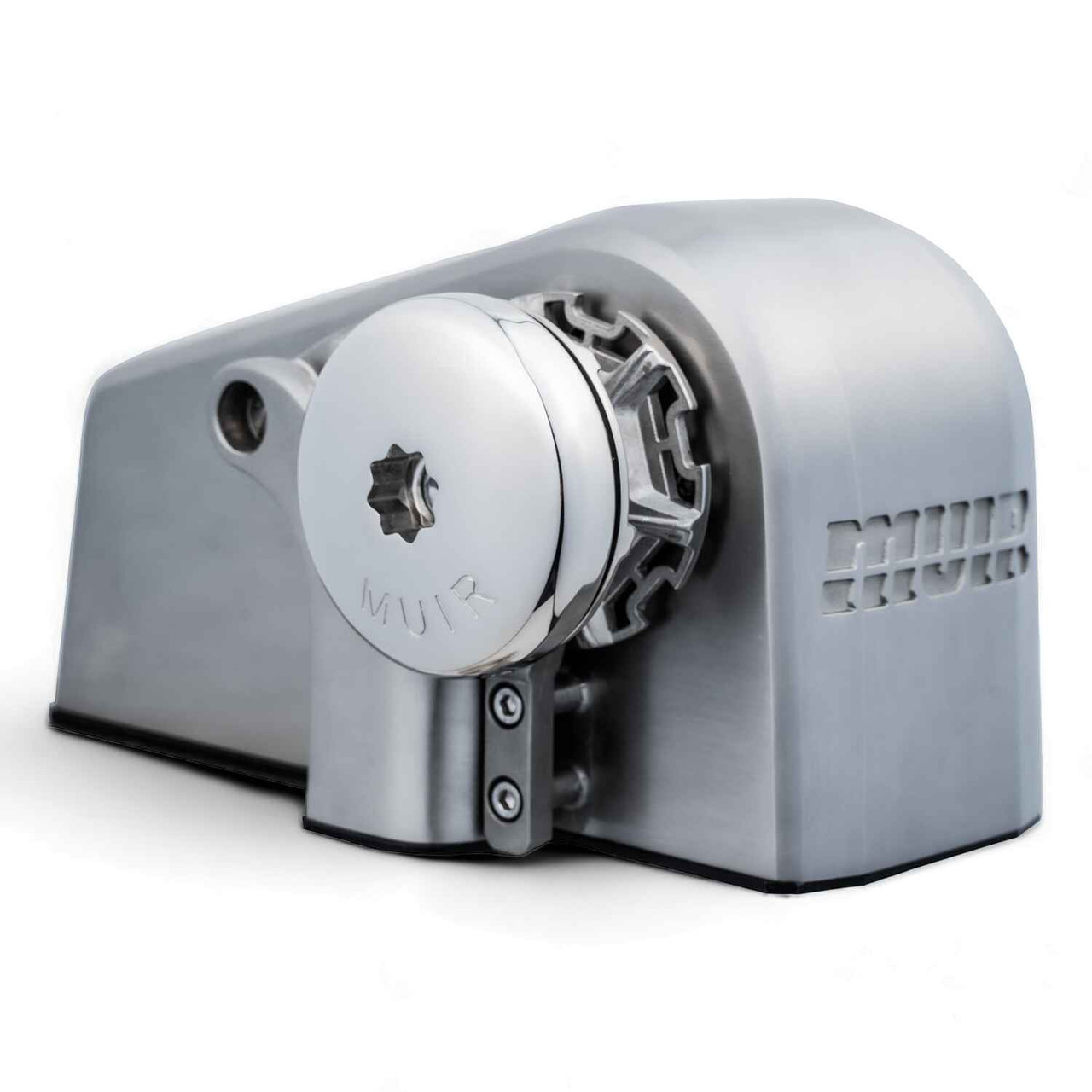

Muir HR/HC650 Horizontal Windlasses - Quote Only

• Brushed finished 316 stainless steel housing

• Polished stainless steel components

• High tensile stainless steel shaft

• Heavy duty, marine grade, dual-direction motor

• Superior, heavy-duty Italian drive train

• Chain pipe & peeler

• Independent gypsy and capstan operation

• Front double twin footings

• Suits multiple global chain standards

• Deck isolation pad

Included in the package

Circuit Breaker & Mounting Pannel

Rocker Switch

Deck mounting studs & fasteners

Clutch release handle small

Reversing Solenoid kit

Installation/Operation booklet





Technical Specifications

Name	Specifications
Recommended Vessel Length	5-9m
Power Supply Options	DC 12V
Recommended Muir Circuit Breaker	80A (12V)
Motor (Watts)	550Watts
Amps Workload	60A (12V)
Max Load	369Kg
Workload	123Kg
Max Line Speed	21m/min
Compatible Chain Sizes	6 mm (1/4“)
Compatible Rope Sizes	12mm (1/2″), 14mm (9/16″), 16mm (5/8″)
Auto Anchor Compatible	Yes
Net Weight DC	12Kg
Manual Operation	N/A
