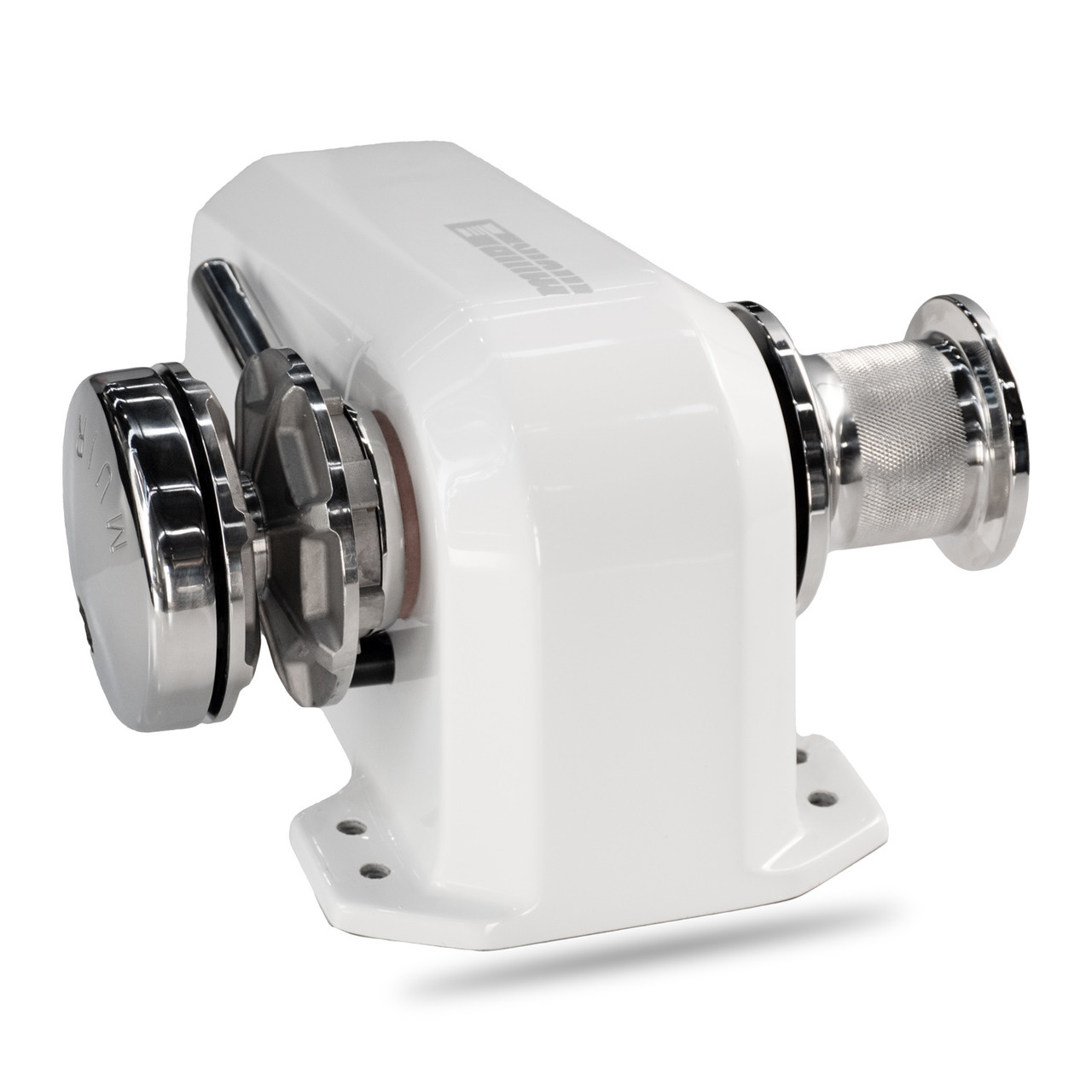

Muir HR1600 Cougar Horizontal Windlasses - Quote Only
Hover over image to zoom
Product Description
MUIR HR1600 Cougar series horizontal windlasses are ideal for installations where the chain box is not easily accessible. These windlasses are completely above deck and have a long life marine aluminum alloy housing and a powerful high performance motor with gearbox. The housing protects the motor and gearbox from the harsh weather. The Compact Series includes many innovative features of the vertical windlass.
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Gypsy lock/pawl
- Chain pipe & peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Included in the package:
Circuit Breaker & Mounting Pannel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs & fasteners
Manual Override System (MORS)
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 10-14m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
100A/80A (12/24V) |
| Motor (Watts) | 1200Watts |
| Amps Workload | 125A/60A (12/24V) |
| Max Load | 621Kg |
| Workload | 207Kg |
| Max Line Speed | 30m/min |
| Compatible Chain Sizes | 6 mm (1/4“), 8 mm (5/16“), 10 mm (3/8”) |
| Compatible Rope/Chain Combo | N/A |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 25Kg |
| Net Weight Hydraulic | 24Kg |
| Manual Operation | MORS (std) |
