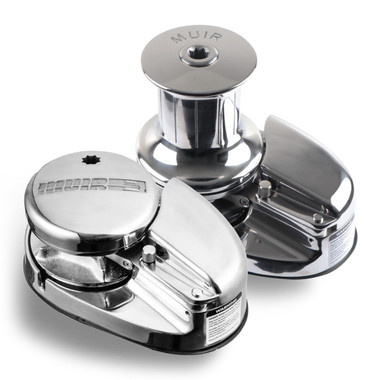

Muir Storm VR/VRC4000 Vertical Windlasses - Quote Only

• Polished stainless steel components

• High tensile stainless steel shaft

• Heavy duty, marine grade, dual-direction motor

• Superior, heavy-duty Oil bath worm drive gearbox

• Rope Chain Management System (RCMS) fitted

• Integrated quick release with chain pipe cover

• Self-lubricating bush

• Capstan models feature a knurled grip

• Independent gypsy and capstan operation

• Suits multiple global chain standards

• Deck isolation pad

Included in the package:

Circuit Breaker & Mounting Pannel

Deck Switch

Deck mounting studs & fasteners

Clutch release handle

Installation/Operation booklet





Technical Specifications

Name	Specifications
Recommended Vessel Length	18-25m
Power Supply Options	DC 24V, DC 48V
Recommended Muir Circuit Breaker	150A/100A (12/24V)
Motor (Watts)	2200Watts
Amps Workload	110A (12V)
Hydraulic Pressure	199MPa
Hydraulic Flow	22L/min
Max Load	2100Kg
Workload	700Kg
Max Line Speed	17m/min
Compatible Chain Sizes	8mm (1/4"), 10mm (5/16"), 13mm (3/8")
Compatible Rope/Chain Combo	8mm (5/16"), 10mm (3/8"), 13mm (3/8")
Compatible Rope Sizes	14mm (9/16″), 16mm (5/8″), 20mm (3/4″)
Auto Anchor Compatible	Yes
Net Weight DC	54Kg
Net Weight Hydraulic	50Kg
Manual Operation	MORS (opt)



The VR/VRC4000 Is a special order item that will be built to your requirements.
