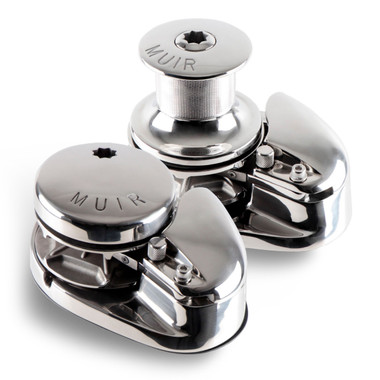

Muir Storm VR/VRC2200 Vertical Windlasses - Quote Only
Hover over image to zoom
Product Description
Designed for vessels up to 25m (85ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions.
Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principles of the award-winning Atlantic series with all its features and more.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Included in the package:
Circuit Breaker & Mounting Pannel
Deck Switch
Quick fit adaptor
Deck mounting studs & fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System (MOS)
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 12-15m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
150A/100A (12/24V) |
| Motor (Watts) | 1500Watts |
| Amps Workload | 150A/70A (12/24V) |
| Hydraulic Pressure | 10MPa |
| Hydraulic Flow | 15L/min |
| Max Load | 1100Kg |
| Workload | 367Kg |
| Max Line Speed | 30m/min |
| Compatible Chain Sizes | 6 mm (1/4“), 8 mm (5/16“), 10 mm (3/8”) |
| Compatible Rope/Chain Combo | 6mm (1/4"), 8mm (5/16"), 10mm (3/8") |
| Compatible Rope Sizes |
12mm (1/2″), 14mm (9/16″), 16mm (5/8″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 23.5Kg |
| Net Weight Hydraulic | 22.5Kg |
| Manual Operation | MOS (std on most gypsy sizes) |
