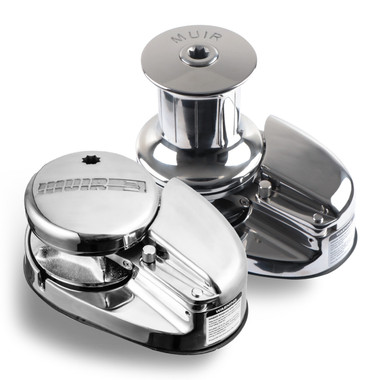

Muir Storm VR/VRC3500 Vertical Windlasses - Quote Only

• Polished 316 stainless steel components

• High tensile stainless steel shaft

• Heavy duty, marine grade, dual-direction motor

• Superior, heavy-duty Oil bath worm drive gearbox

• Rope Chain Management System (RCMS) fitted

• Integrated quick release with chain pipe cover

• Self-lubricating bush

• Capstan models feature a knurled grip

• Independent gypsy and capstan operation

• Suits multiple global chain standards

• Deck isolation pad

Included in the package:

Circuit Breaker & Mounting Pannel

Deck Switch

Deck mounting studs & fasteners

Clutch release handle

Installation/Operation booklet





Technical Specifications

Name	Specifications
Recommended Vessel Length	15-24m
Power Supply Options	DC 12V, DC 24V, DC 48V
Recommended Muir Circuit Breaker	150A/100A (12/24V)
Motor (Watts)	1700Watts
Amps Workload	185A/90A (12/24V)
Hydraulic Pressure	10MPa
Hydraulic Flow	28L/min
Max Load	1650Kg
Workload	550Kg
Max Line Speed	28m/min
Compatible Chain Sizes	8mm (1/4"), 10mm (5/16"), 13mm (3/8")
Compatible Rope/Chain Combo	8mm (5/16"), 10mm (3/8"), 13mm (3/8")
Compatible Rope Sizes	14mm (9/16″), 16mm (5/8″), 20mm (3/4″)
Auto Anchor Compatible	Yes
Net Weight DC	42Kg
Net Weight Hydraulic	38Kg
Manual Operation	MORS (opt)



Manual

Deck Template



Model	Description	Wattage	Voltage	Variant	Retail	Typical Price
M3500L12-5/16H	Storm SS3500, 12V, Low Profile, 5/16"HT Gypsy	1500W	12VDC	Low Profile	$5,600.00	$5,040.00
M3500L12-3/8B	Storm SS3500, 12V, Low Profile, 3/8"BBB Gypsy	1500W	12VDC	Low Profile	$5,600.00	$5,040.00
M3500L12-3/8H	Storm SS3500, 12V, Low Profile, 3/8"HT Gypsy	1500W	12VDC	Low Profile	$5,600.00	$5,040.00
M3500L12-7/16H	Storm SS3500, 12V, Low Profile, 7/16"HT Gypsy	1500W	12VDC	Low Profile	$5,600.00	$5,040.00
M3500L12-1/2H	Storm SS3500, 12V, Low Profile, 1/2"HT Gypsy	1500W	12VDC	Low Profile	$5,600.00	$5,040.00
M3500L24-5/16H	Storm SS3500, 24V, Low Profile, 5/16"HT Gypsy	1500W	24VDC	Low Profile	$5,600.00	$5,040.00
M3500L24-3/8B	Storm SS3500, 24V, Low Profile, 3/8"BBB Gypsy	1500W	24VDC	Low Profile	$5,600.00	$5,040.00
M3500L24-3/8H	Storm SS3500, 24V, Low Profile, 3/8"HT Gypsy	1500W	24VDC	Low Profile	$5,600.00	$5,040.00
M3500L24-7/16H	Storm SS3500, 24V, Low Profile, 7/16"HT Gypsy	1500W	24VDC	Low Profile	$5,600.00	$5,040.00
M3500L24-1/2H	Storm SS3500, 24V, Low Profile, 1/2"HT Gypsy	1500W	24VDC	Low Profile	$5,600.00	$5,040.00
M3500LH24-3/8H	Storm SS3500, Hydraulic, Low Profile, 3/8"HT Gypsy		HYD	Low Profile	$6,000.00	$5,400.00
M3500LH24-1/2H	Storm SS3500, Hydraulic, Low Profile, 1/2"HT Gypsy		HYD	Low Profile	$6,000.00	$5,400.00
M3500C12-5/16H	Storm SS3500, 12V, Capstan, 5/16"HT Gypsy	1500W	12VDC	Capstan	$5,800.00	$5,220.00
M3500C12-3/8H	Storm SS3500, 12V, Capstan, 3/8"HT Gypsy	1500W	12VDC	Capstan	$5,800.00	$5,220.00
M3500C12-7/16H	Storm SS3500, 12V, Capstan, 7/16"HT Gypsy	1500W	12VDC	Capstan	$5,800.00	$5,220.00
M3500C12-1/2H	Storm SS3500, 12V, Capstan, 1/2"HT Gypsy	1500W	12VDC	Capstan	$5,800.00	$5,220.00
M3500C24-5/16H	Storm SS3500, 24V, Capstan, 5/16"HT Gypsy	1500W	24VDC	Capstan	$5,800.00	$5,220.00
M3500C24-3/8B	Storm SS3500, 24V, Capstan, 3/8"BBB Gypsy	1500W	24VDC	Capstan	$5,800.00	$5,220.00
M3500C24-3/8H	Storm SS3500, 24V, Capstan, 3/8"HT Gypsy	1500W	24VDC	Capstan	$5,800.00	$5,220.00
M3500C24-7/16H	Storm SS3500, 24V, Capstan, 7/16"HT Gypsy	1500W	24VDC	Capstan	$5,800.00	$5,220.00
M3500C24-1/2H	Storm SS3500, 24V, Capstan, 1/2"HT Gypsy	1500W	24VDC	Capstan	$5,800.00	$5,220.00
M3500CH-3/8H	Storm SS3500, Hydraulic, Capstan, 3/8"HT Gypsy		HYD	Capstan	$6,400.00	$5,760.00
M3500CH-1/2H	Storm SS3500, Hydraulic, Capstan, 1/2"HT Gypsy		HYD	Capstan	$6,400.00	$5,760.00
