New England Ropes HSR-75 - Quote
Hover over image to zoom
Product Description

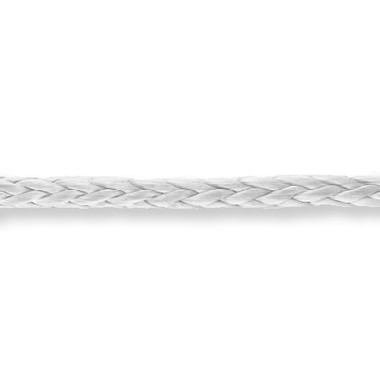

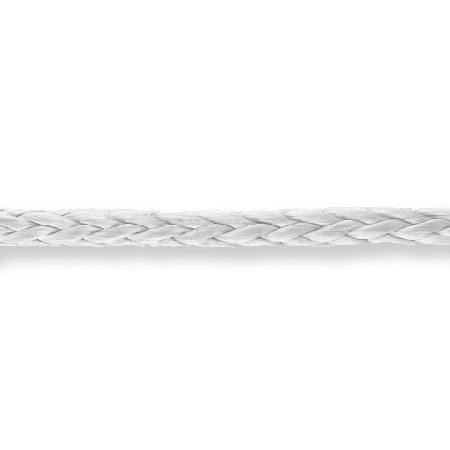

HSR-75
STS - stronger than steel®
Comprised of Dyneema® fiber, Stronger Than Steel® HSR is heat-set which at a microscopic level reorients the molecular chains in a linear fashion, thus ensuring greater load bearing capacity throughout the rope.
This process increases the rope’s breaking strength through the use of increased temperature and tension and achieves a uniform fiber distribution.
FEATURES
- 12 Strand single braid
- UV resistant
- specific gravity - 0.97
Material: Single braid Heat-set Dyneema® SK75
technical product data
| Diameter [mm] | Diameter [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|
| 3 | 1/8 | 0.60 | 5,200 |
| 5 | 3/16 | 1.30 | 9,475 |
| 6 | 1/4 | 1.70 | 12,385 |
| 7 | 9/32 | 2.50 | 18,700 |
| 8 | 11/32 | 3.95 | 23,600 |
| 11 | 7/16 | 5.10 | 31,530 |
| 12 | 1/2 | 6.80 | 43,675 |
| 14 | 9/16 | 9.30 | 55,770 |
| 16 | 5/8 | 11.00 | 65,950 |
| 18 | 3/4 | 13.00 | 86,350 |
| 20 | 25/32 | 17.70 | 103,650 |
| 22 | 7/8 | 18.90 | 112,760 |
| 24 | 1 | 23.30 | 130,900 |
