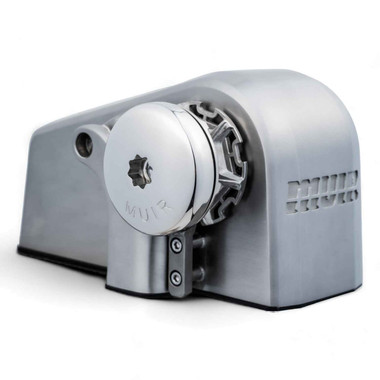

Muir HR/HC950 Horizontal Windlasses - Quote Only
Hover over image to zoom
Product Description
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Chain pipe & peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Included in the package
Circuit Breaker & Mounting Pannel
Rocker Switch
Deck mounting studs & fasteners
Clutch release handle small
Reversing Solenoid kit
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 7-11m |
| Power Supply Options | DC 12V |
| Recommended Muir Circuit Breaker |
80A (12V) |
| Motor (Watts) | 750Watts |
| Amps Workload | 70A (12V) |
| Max Load | 464Kg |
| Workload | 154.7Kg |
| Max Line Speed | 21m/min |
| Compatible Chain Sizes | 8 mm (5/16“) |
| Compatible Rope Sizes |
12mm (1/2″), 14mm (9/16″), 16mm (5/8″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 13Kg |
| Manual Operation | N/A |
