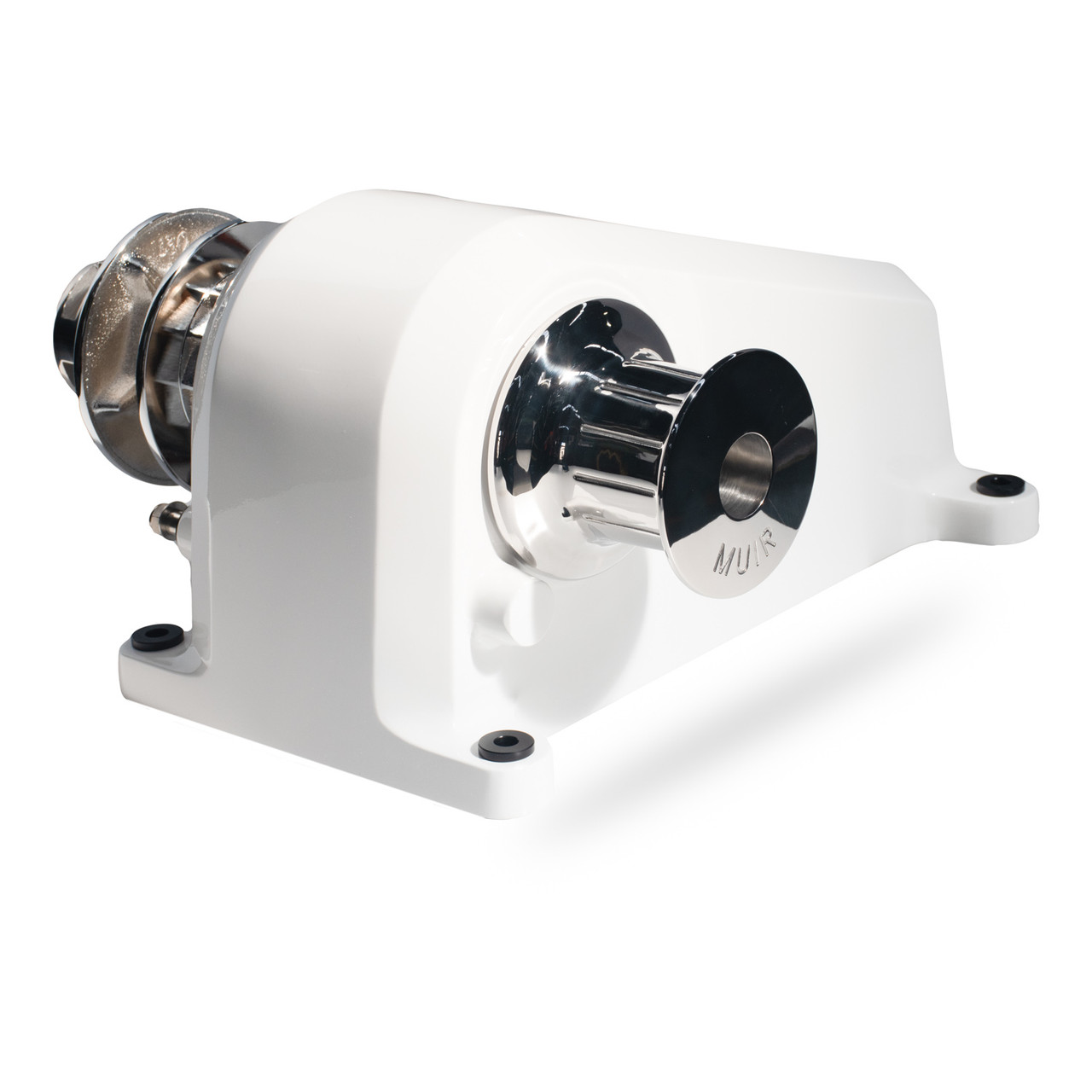

Muir HR4000 Thor Horizontal Windlasses - Quote Only

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
muir
$0.00

 Product Description



Features

  • Durable marine-grade white gloss composite housing
  • Luxury chromed marine grade bronze / 316 Stainless steel running gear
  • High tensile stainless steel shaft
  • Heavy duty, marine grade, dual-direction motor
  • Superior, heavy-duty Italian drive train
  • Chain pipe & peeler
  • Independent gypsy and capstan operation
  • Front double twin footings
  • Suits multiple global chain standards
  • Deck isolation pad



Included in the package:

Circuit Breaker & Mounting Pannel

Chain Pipe

Deck Switch

Clutch release handle

Installation/Operation booklet

Deck mounting studs & fasteners

Manual Override System (MORS)



Technical Specifications
Name Specifications
Recommended Vessel Length 18-24m
Power Supply Options DC 24V, DC 48V
Recommended Muir Circuit Breaker

150A (24V)

Motor (Watts) 1700Watts
Amps Workload 90A (12V)
Hydraulic Pressure 12MPa
Hydraulic Flow 28L/min
Max Load 1800Kg
Workload 600Kg
Max Line Speed 17m/min
Compatible Chain Sizes 8 mm (5/16“), 10 mm (3/8”), 13 mm (1/2”), 16 mm (5/8”)
Auto Anchor Compatible Yes
Net Weight DC 64Kg
Net Weight Hydraulic 63Kg
Manual Operation MORS (std)


Manual

Deck Template



Models Description Wattage Voltage   Retail Typical Price
MH400012-3/8H Thor, 12V, 3/8"HT Gypsy 1500W 12VDC Capstan Port/Gypsy Stbd. $8,800.00 $7,920.00
MH400012-1/2H Thor, 12V, 1/2"HT Gypsy 1500W 12VDC Capstan Port/Gypsy Stbd. $8,800.00 $7,920.00
MH400024-3/8H Thor, 24V, 3/8"HT Gypsy 1500W 24VDC Capstan Port/Gypsy Stbd. $8,800.00 $7,920.00
MH400024-1/2H Thor, 24V, 1/2"HT Gypsy 1500W 24VDC Capstan Port/Gypsy Stbd. $8,800.00 $7,920.00
