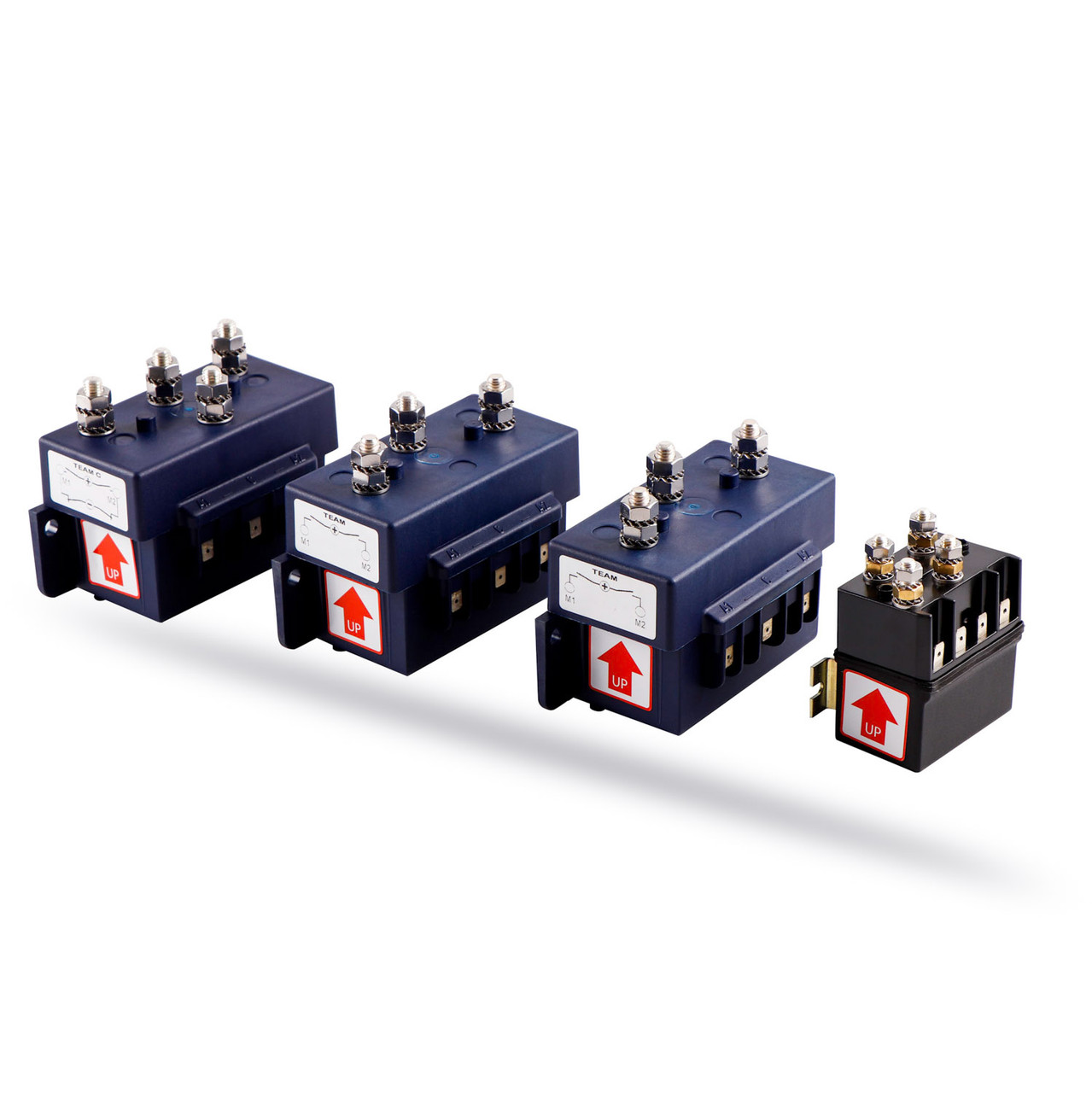

Muir reversing solenoids allow for dual directional operation of your Muir windlasses and capstans. Use with up/down switches, deck switches, remote panels, and auto anchor systems. Muir reversing solenoids are designed to withstand harsh marine environments and are rated for 3 million cycles, much longer than typical solenoids. Muir reversing solenoids are available in different voltages (12V or 24V) and poles (2, 3, or 4) to suit. Please refer to the selection table below to find the specific solenoid for your Muir model.
Windlass Model |
Watts |
12V |
24V |
VR/C 0600 | 800W | 2P P801043 | 4P P801051 |
VR/C 0850 | 800W | 2P P801043 | 4P P801051 |
VR/C 1250 | 1200W | 2P P801045 | 4P P801050 |
VR/C 2200 | 1500W | 3P P801045 | 3P P801050 |
VR/C 2500 | 1500W | 3P P801045 | 3P P801050 |
VR/C 3500 | 1700W | 3P P801045 | 3P P801050 |
VR/C 4000 | 2200W | N/A | 4P P801051 |
VFF 0600 | 800W | 2P P801043 | 4P P801051 |
VM/VMC 0500 | N/A | N/A | |
HR 0650 / HC650 Lynx | 550W | 2P P801043 | N/A |
HR 0950 Ocelot | 750W | ||
HR 1200 Wild Cat (Design Stage) | 800W | ||
HR 1600 Cougar | 1200W | 3P P801045 | 3P P801050 |
HR 2500 Cheetah | 1500W | 3P P801045 | 3P P801050 |
HR 3500 Jaguar | 1700W | 3P P801045 | 3P P801050 |
HR 4000 Thor | 1700W | 3P P801045 | 3P P801050 |
HR 4200 Thor | 2200W | N/A | 4P P801051 |
VC 0500 | 800W | 2P P801043 | 4P P801051 |
VC 0650 | 800W | 2P P801043 | 4P P801051 |
VC 0850 | 1200W | 3P P801045 | 3P P801050 |
VC 2500 | 1500W | 3P P801045 | 3P P801050 |
VC 3500 | 1700W | 3P P801045 | 3P P801050 |
VC 0800 (Easyweigh) | 900W | N/A | N/A |
H 0900 (Easyweigh) | 900W | 2P P801043 | N/A |
V 0900 (Easyweigh) | 900W | 2P P801043 | N/A |
DW 06 | 600W | 2P P801043 | 4P P801043 |
DW 08 | 800W | 2P P801043 | 4P P801051 |
DFF 08 | 800W | 2P P801043 | 4P P801051 |
DW 10 | 1200W | 3P P801045 | 3P P801050 |
DFF 10 | 1200W | 3P P801045 | 3P P801050 |
DW 12 | 1500W | 3P P801045 | 3P P801050 |
DW 15 | 1700W | 3P P801045 | 3P P801050 |
