Muir AA800 Control and Counter - Quote
Hover over image to zoom
Product Description
Description
The world’s most advanced chain counter has arrived. The core of the AutoAnchor range means fewer complications and greater control over your anchoring. SmartBox technology opens up myriad of anchor monitoring possibilities when combined with 3rd party information such as GPS and depth. AutoAnchor can now transform other anchor watch software into a more comprehensive anchoring tool.
Specification
|
Parameter |
AA802 Smart Box |

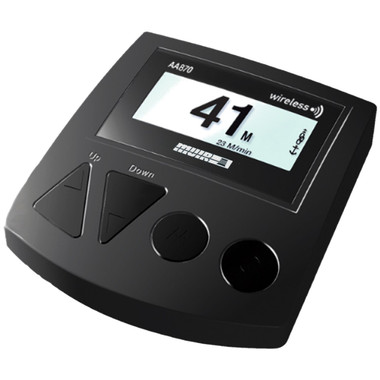

AA870 Smart Console |
|
Power supply |
12V/24V DC |
12V/24V DC |
|
Maximum Voltage |
30V DC |
30V DC |
|
Current Consumption |
30mA |
30mA |
|
Output Maximum Current Draw |
12V DC: 4A 24V DC: 4A |
12V DC: 4A 24V DC: 4A |
|
Output Minimum Current Draw |
12V DC: 10mA 24V DC: 20mA |
12V DC: 10mA 24V DC: 20mA |
|
IP Rating |
IP67 |
IP67 from the front provided the unit is mounted so the back is protected from moisture. |
|
Operating Temperature Range |
23°F to 140°F (-5°C to 60°C) |
23°F to 140°F (-5°C to 60°C) |
|
Wireless Transmission |
2.4Hz ISM Band, IEEE 802.15.1 compliant |
|
|
Wireless Range |
Typical minimum 15m (50ft). Range depends on installation. |
|
|
Network |
NMEA 2000 compliant |
NMEA 2000 (pending) |
|
Sensor |
Compatible with AA800 Smart Sensor only. |
Not applicable. |
|
Rode – Chain Only |
Stainless or galvanized steel. |
|
|
Rode – Rope and Chain |
Must have a minimum of 10ft (3m) of chain. Chain must be galvanized steel. Rope should be a good quality, nylon anchor rope. Type 66 or equivalent. |
|
|
DC windlasses require a dual-direction solenoid. |
||
Features
- Effortless addition of multiple counters
- Very accurate chain and rope count
- Simplified installation, set up and calibration.
- Daisy-chain wiring to read outs with a single cable or via Bluetooth
- NMEA2000 for 3rd party displays and for integrated information
- Bluetooth Wireless for excellent wireless coverage and links to smartphone apps or plotters
- Improved sensor technology
Package Inclusions
AutoAnchor 800 Kit Includes:
- Sensor with 2m cable
- Load sensing connectors
- 2 X Magnet
- Installation/Operation booklet
