Muir AA710 Wireless Remote Control and Counter - Quote

REMOTE CONTROL FOR WINDLASSES, THRUSTERS, DAVITS, DECK LIGHTS, ANCHORWASH

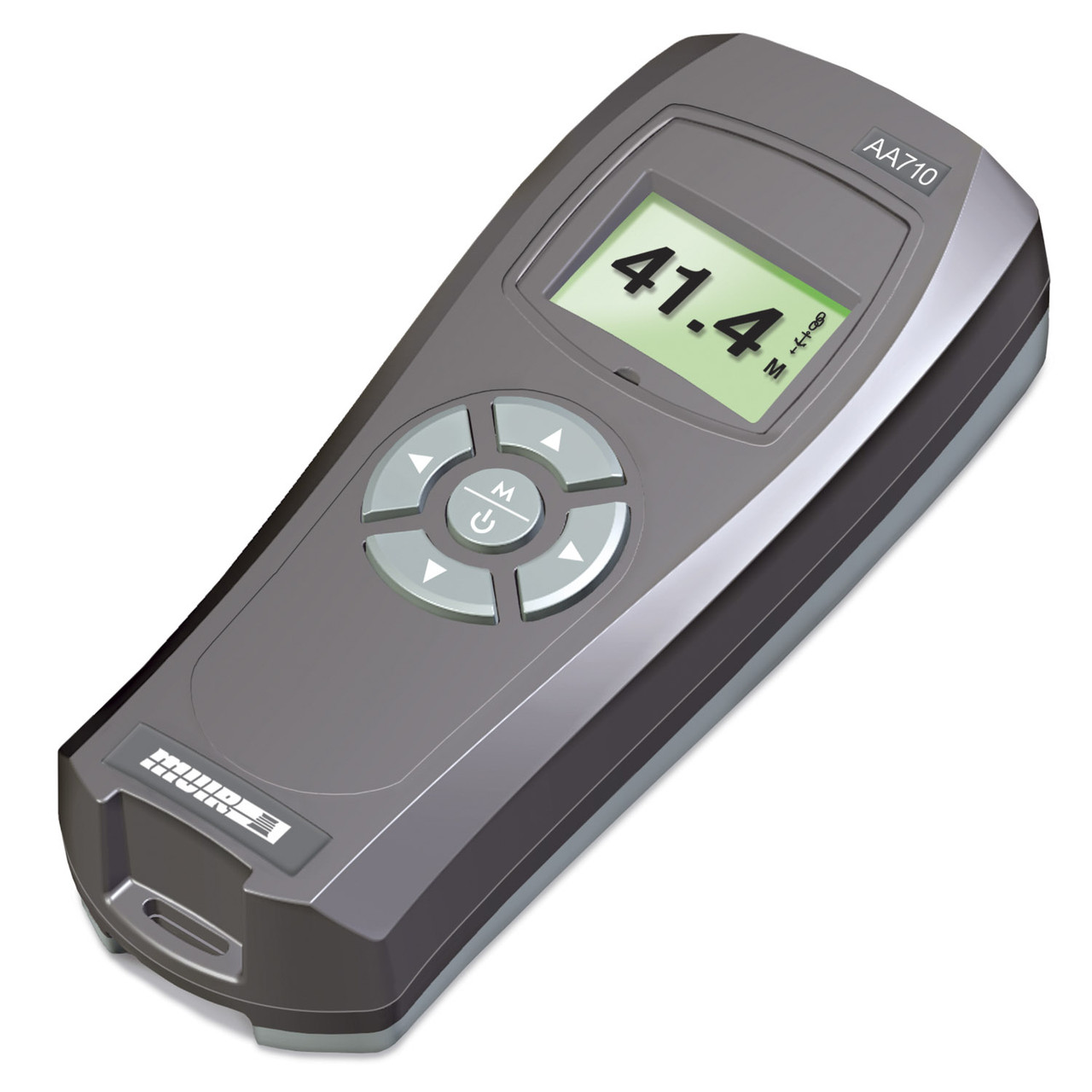

AutoAnchor 710 for control anywhere on the boat. See at a glance the length of anchor rode deployed.

Functions:

A system with one base station (6 outputs) can operate:

• 1 windlass plus a deck wash and deck light or other auxiliary functions
• or 1 windlass and 1 or 2 thrusters

Kit Includes:

• 1 console, 1 base station, 1 sensor, 1 magnet, load sensing connectors, installation and
  operation instructions. Additional consoles, base stations and antennas sold separately.

FEATURES:

• Full windlass control and chain counting
• Controls bow and stern thrusters independently and together
• Preset the length of rode to deploy
• Auto stop and docking alarm when the anchor is close to docking
• Works with rope/chain or all-chain rode
• Logs windlass operating hours for maintenance
• Easy installation and set up on most windlasses
• Plug and play sensor installation
• Console unit is shockproof, waterproof and will float
• High level wireless transmission security with unique ID
• Safety lock reduces unwanted operation
• Ergonomic shape with rubber grip for wet conditions
• Console holder and protective cover
• Displays signal strength and battery level
• Use with DC, AC, Hydraulic and drum windlasses
• Operates in parallel with other control equipment
  eg toggle switches, foot switches and other electronic controllers
• outputs in the base station – A single kit can be used for 1 windlass plus a bow and stern thruster
• Antenna plug is standard on the base station
• Automatic sensor detection – no need to select sensor in the set up
• Manual control alarm and stop at docking distance – stops the windlass during retrieval when using
  manual and automatic operation
• Swap controls option in set up – this option means the Up button can be used as Out
  and the Down button can be used as In
• Time out connection between the base station and the console now adjustable up to 20 minutes
• Dual speed windlass capability
• Options for windlass related actions, using the left and right arrow buttons – user selected and could
  include a windlass stow, power cleats, deck wash, deck light
• Power enable option now available with off delay for hydraulic, AC, DC and PLC installations

AUTOANCHOR 710 WIRELESS REMOTE CONTROL AND CHAIN COUNTER

TECHNICAL SPECIFICATIONS

For DC windlasses a dual direction solenoid is required.

Package Inclusions
