Muir AA730 Wired Remote Control and Counter - Quote
Hover over image to zoom
Product Description

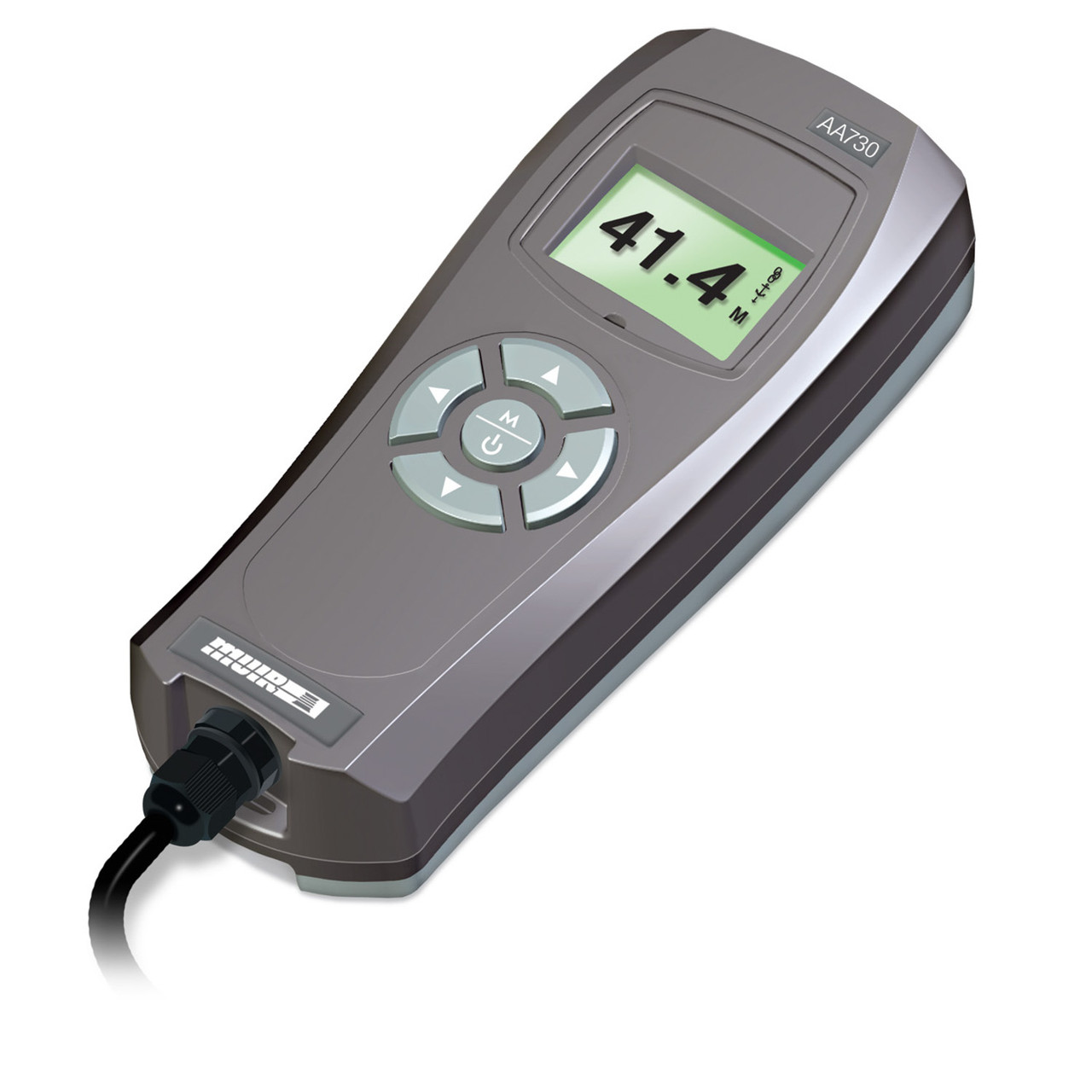

AUTOANCHOR AA730 REMOTE CONTROL WITH LCD AND CHAIN COUNTER
Tough Waterproof Control for Marine Equipment: Windlasses Anchorwash, Thrusters Davits, Lights Passerelles.
Features:
- 4 metres spiral cable
- Electrical protection against back-emf
- Rubber over-moulding for shock protection and grip
- Stowage cradle
- Operation in parallel with all AutoAnchor products
eg toggle switches, foot switches or other control equipment - Connect to DC, AC and Hydraulic systems
- Rugged cable and connectors with:
- Moulded plug and socket rated to IP67
- 2m flying-lead from socket for better connectivity
- Gold plated contacts on plug and socket to reduce corrosion
- Socket sealing cap
PLUS Windlass and Drum Winch Control with Chain Counter:
- Preset the length of rode to deploy
- Counts rope/chain or all-chain rode
- Choice of feet, metres or fathoms measurement
- Logs windlass operating hours for maintenance
- Easy calibration
- Electronic diagnostics for troubleshooting installation
- Auto stop and docking alarm when the anchor is close to docking
- Able to control a two speed windlass
Technical Specifications:
| Power Supply | 12V or 24V DC(RMS) |
| Current Consumption | 50mA |
| Output Maximum Current Draw | 12V DC: 3.5A; 24V DC: 3.5A |
| Output Minimum Current Draw | 12V DC: 10mA; 24V DC: 20mA When connecting to a solid state switching or other low current windlass drive, a PLC or AC variable frequency drive, a dummy resistor load (Part #9515) may be required. |
| IP Rating | IP67 |
| Operating Temperature Range | 23oF to 140oF (-5oC to 60oC) |
| Outputs | 6 |
| Rode – Chain Only | Stainless or galvanised steel |
| Rode – Rope and Chain | Must have a minimum of 10ft (3m) of chain. Chain must be galvanised steel. Rope should be a good quality nylon anchor rope. Type 66 or equivalent. |
| EMC Protection/CE | EN60945 |
For DC windlasses a dual direction solenoid is required.
Package Inclusions
AA730 Kit Includes:
- 1 Handheld Console Unit with a Cradle
- 1 Base Station
- Deck Socket with 2m Lead
- Socket Sealing Cap
- 1 sensor with 2m cable
- 2 Magnets
- Screws for the Cradle & Socket
- Installation & Operation Instructions
