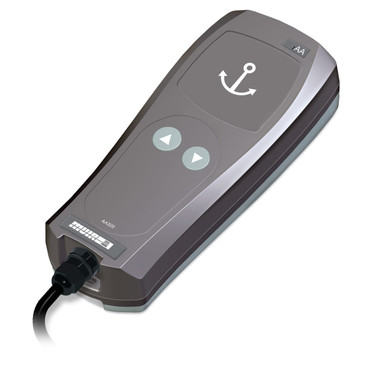

Muir AA320 Remote Control - Quote
Hover over image to zoom
Product Description
TOUGH WATERPROOF CONTROLS FOR MARINE EQUIPMENT:
Windlasses Thrusters Lights Anchorwash Davits
Passerelles Hatches Transom Doors Self Furling Sail Systems
- 2 Outputs
- 2 Buttons Up/Down
Technical Specification
| Maximum Operating Voltage | 30V DC or 25V AC (RMS) |
| Maximum Output Current | 3A |
| Temperature Range | 23°F to 140°F (-5°C to 60°C) |
| Enclosure Dimensions(HxWxD) | 150.46 mm x 64.37 mm x 47.42mm (5.92″ x 2.53″ x 1.87″) |
| IP Rating | IP67 |
Features:
- Electrical protection against back-emf
- Ergonomic shape with rubber over-moulding for shock protection and grip
- Stowage cradle
- Operation in parallel with all AutoAnchor products.
toggle switches, foot switches or other control equipment - Connect to DC, AC and Hydraulic systems
- Rugged cable and connectors with:
- Moulded plug and socket rated to IP67
- 2m flying-lead from socket for better connectivity
- Gold plated contacts on plug and socket to reduce corrosion
- Socket sealing cap
Package Inclusions
AA320 Kit Includes:
- Pendant with cradle
- Deck Socket with 2m Lead
- Socket Sealing Cap
- Screws for the Cradle & Socket
- Installation and operation instructions
