Muir AA560 Control and Counter - Quote

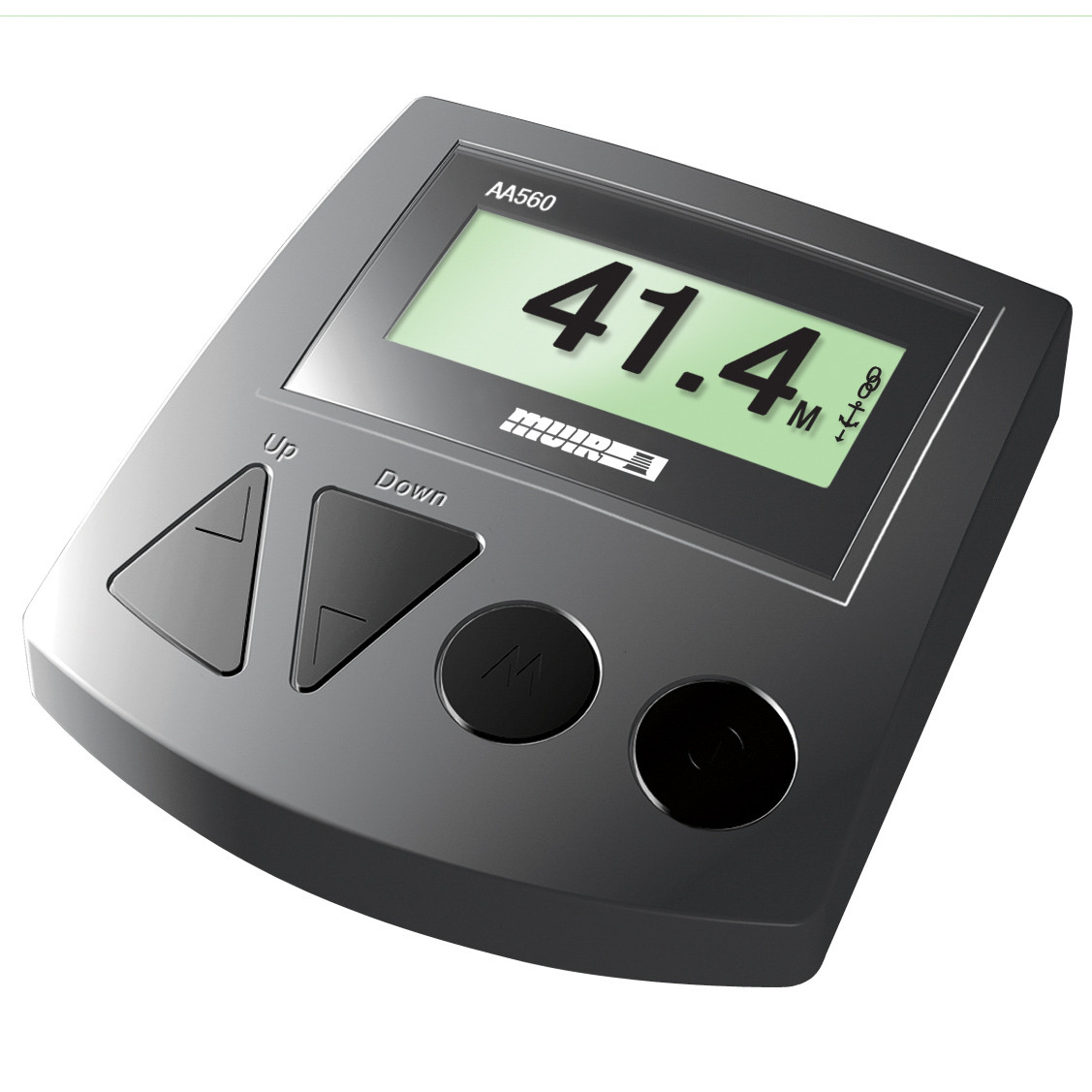

The Auto Anchor 560 is a surface-mounted windlass control panel, allowing boaters to deploy and retrieve their anchor with the push of a button from the helm. With a user-friendly digital display, it accurately tracks and displays the length of anchor rope and chain deployed.

Features

• Improved contrast on the LCD
• Automatic Sensor Detection – no need to select sensor in the set up
• Manual control stop at docking distance – stops the windlass during retrieval when using manual and automatic operation
• Swap controls option in the set up – this option means the Up button can be used as Out and the Down button can be used as In
• Drum windlass counting capability
• Improved troubleshooting – Simplified diagnostics and built in voltmeter with expanded technician diagnostics

Plus

• “One touch” automatic function deploys and retrieves a preset length of anchor rode
• Docking alarm and pre-set stopping point help protect the boat during anchor retrieval
• Adjustable backlighting ensures clear night operation
• Choice of feet or metres rode measurement
• Safety lock reduces unwanted windlass operation
• Easy installation and set up
• Plug and play sensor installation
• Use with DC, AC and hydraulic windlasses
• Logs windlass operating hours for maintenance
• Inbuilt diagnostics for troubleshooting installation issues
• Install up to 2 units or combine with other AutoAnchor products for multiple stations on the boat
• For all-chain counting, the AA560 also operates with a reed switch sensor, including those fitted directly in the windlass gearbox
• Counts with high current footswitches
• Works with all other AA electronic sensors for retrofitting ie Grey, Black & Flat
• Weather cover to protect the console unit

Package Inclusions
