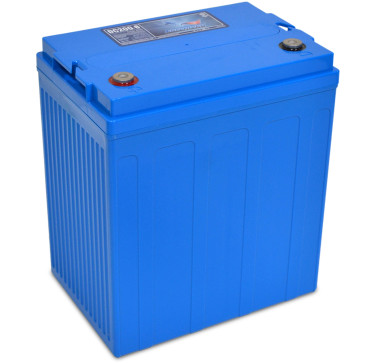

Fullriver DC200-8 Premium Deep Cycle AGM Battery

Group Size:GC8H [BCI]

Capacity:200 Ah

Reserve Capacity:
390 min
140 min

CCA:1150 Amps

Electrical Specifications

Nominal Voltage:8V
C100:220 Ah
C20:200 Ah
C10:180 Ah
C5:156 Ah
C3:135 Ah
C2:120 Ah
C1:111 Ah
CCA:1150 Amps
CA or MCA:1420 Amps
PHCA: 2000Amps
Internal Resistance:2.0 mΩ

Mechanical Specifications

Group Size: GC8H
Terminal Type: M8

Terminal Torque:
5.2 - 6.7 ft/lbs
62 - 80 lbs/in
7 - 9 Nm

Height (w/ terminal): 11.77" / 299mm
Height (case only): 11.61" / 295mm
Width: 7.16" / 182mm
Length: 10.24" / 260mm
Weight: 82.9lbs / 37.6Kg

Case Type: ABS Plastic (Flame Resistant - Rating: UL94-HB)
