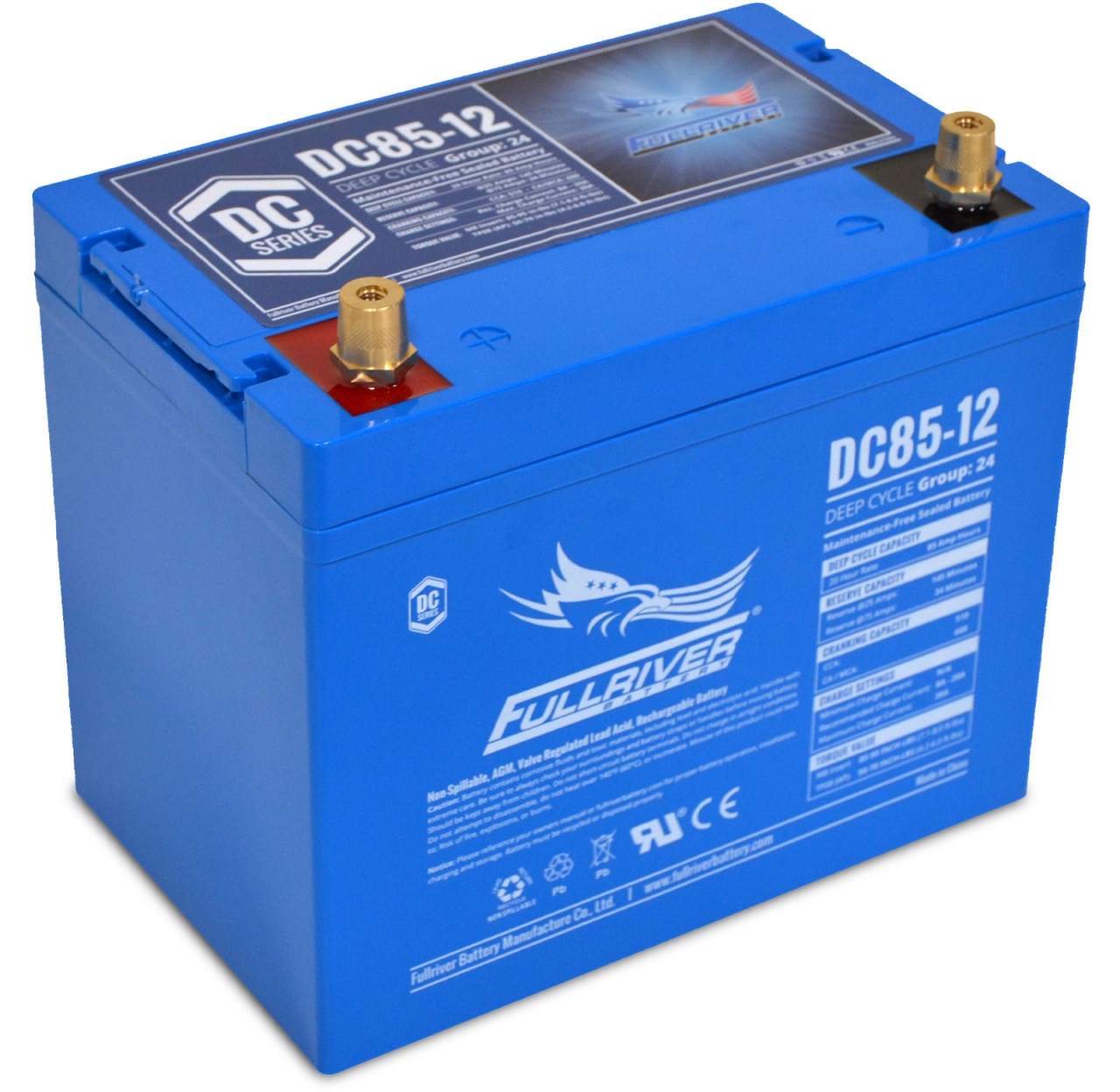

Fullriver DC85-12 Premium Deep Cycle AGM Battery

Group Size:24 [BCI]

Capacity:85 Ah

Reserve Capacity:
145 min at 25A
34 min at 75A

CCA:510 Amps

Electrical Specifications

Nominal Voltage:12V
C100:95 Ah
C20:85 Ah
C10:77 Ah
C5:70 Ah
C3:57 Ah
C2:51 Ah
C1:48 Ah
CCA:510 Amps
CA or MCA:600 Amps
PHCA: 1000Amps
Internal Resistance:5.3 mΩ

Mechanical Specifications

Group Size: 24
Terminal Type: M8 + TP08

Terminal Torque:
5.2 - 6.7 ft/lbs
62 - 80 lbs/in
7 - 9 Nm

Height (w/ terminal): 9.29" / 236mm
Height (case only): 8.31" / 211mm
Width: 6.65" / 169mm
Length: 10.24" / 260mm
Weight: 55.3lbs / 25.1Kg

Case Type: ABS Plastic (Flame Resistant - Rating: UL94-HB)
