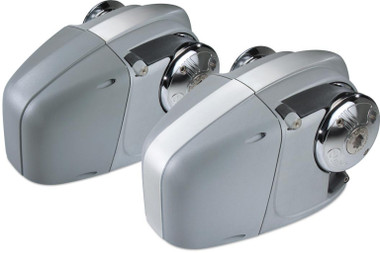

Quick Hector - HC3 Horizontal Windlasses - Quote Only

• Horizontal on-deck windlasses
• Base in anodized aluminium in hard oxide
• Jacket in composite material or in alluminium anodized in hard oxide
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• Integrated solenoids unit
• Emergency manual lift system
• Manual Free-Fall system
• IP66 watertight motor

Gypsy and Drum Ø 130 mm / 5"1/8

	8mm - 5/16"				10mm - 3/8"
	8mm	8mm	5/16"	5/16"	10mm	10mm	3/8"
	DIN 766	ISO	G4	BBB	DIN 766	ISO	G4
	1/2" (12,7mm) - 9/16" (14,2mm) - 5/8" (15,8mm)				5/8" (15,8mm)

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Quick®" system.

Optional accessories

Hydraulic magnetic circuit breaker	UP/DOWN control board	Foot Switches	handheld remote control	Chain counters	Radio remote control
