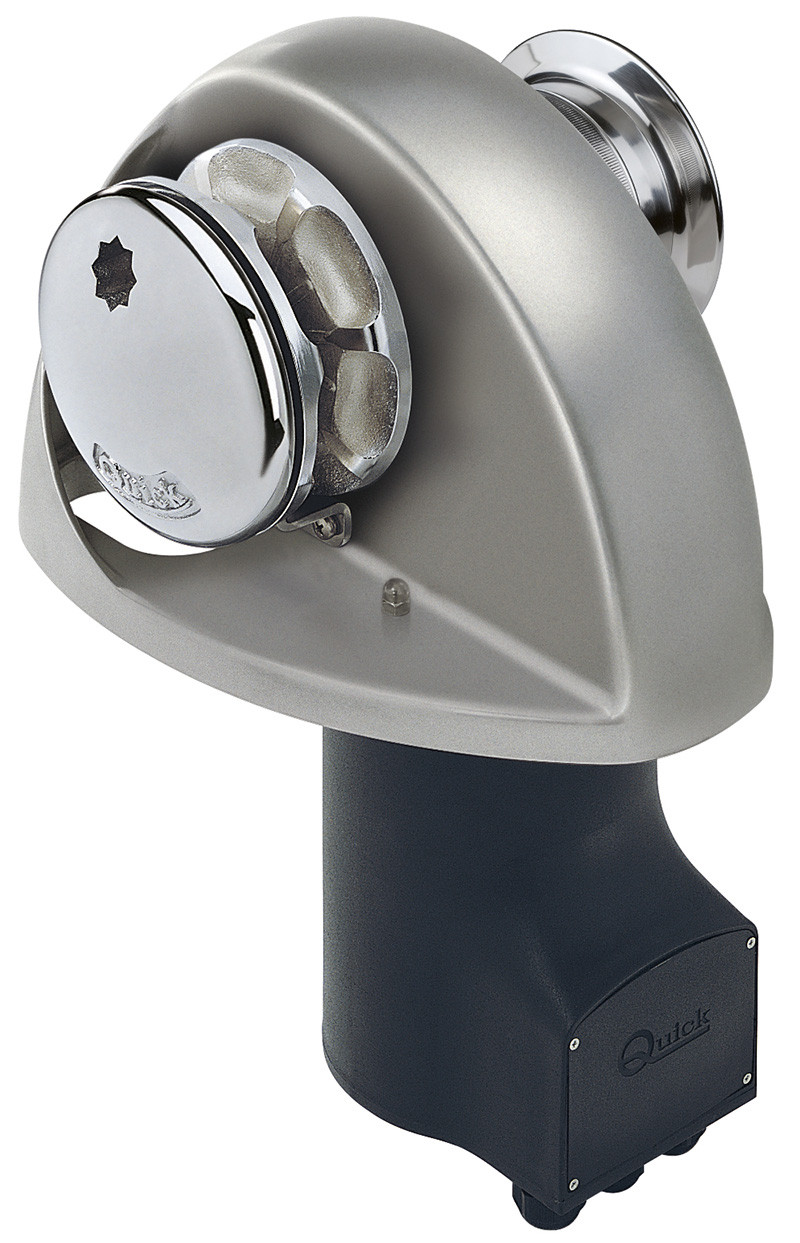

Quick Eagle - E3 Horizontal Windlasses - Quote Only
Hover over image to zoom
Product Description
- Horizontal windlasses
- Base in anodized aluminum in hard oxide
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- IP67 watertight motor
| Eagle | 700 W | 7 - 10 m | 23 - 33 ft |
| Eagle | 1000 W | 10 - 13 m | 33 - 43 ft |
| Eagle | 1400 W | 12 - 15 m | 39 - 49 ft |
Easy Installation. The vertical motor allows for extremely simple and quick installation.
Gypsy and Drum Ø 130 mm / 5" 1/8
 |
6mm |
8mm - 5/16" |
10mm - 3/8" |
|||||
 |
6mm |
6mm |
8mm |
8mm |
5/16" |
5/16" |
10mm |
3/8" |
|
DIN 766 |
ISO |
DIN 766 |
ISO |
G4 |
BBB |
ISO (P.30) |
G4 |
|
 |
|
|||||||
Supplied accessories standard
| Contactor units | Technopolymer handle | |||||||||||||
|
 |
Optional accessories
 |
 |
 |
  |
  |
  |
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Chain |
Radio remote |
| Available Models | |
| FSE00712D008A00 | E3 712D WINDLASS 700W 12V 08mm |
| FSE00712D010A00 | E3 712D WINDLASS 700W 12V 10mm |
| FSE00724D008A00 | E3 724D WINDLASS 700W 24V 08mm |
| FSE00724D010A00 | E3 724D WINDLASS 700W 24V 10mm |
| FSE01012D008A00 | E3 1012D WINDLASS 1000W 12V 08mm |
| FSE01012D010A00 | E3 1012D WINDLASS 1000W 12V 10mm |
| FSE01024D008A00 | E3 1024D WINDLASS 1000W 24V 08mm |
| FSE01024D010A00 | E3 1024D WINDLASS 1000W 24V 10mm |
| FSE01412D008A00 | E3 1412D WINDLASS 1400W 12V 08mm |
| FSE01412D010A00 | E3 1412D WINDLASS 1400W 12V 10mm |
| FSE01424D008A00 | E3 1424D WINDLASS 1400W 24V 08mm |
| FSE01424D010A00 | E3 1424D WINDLASS 1400W 24V 10mm |
