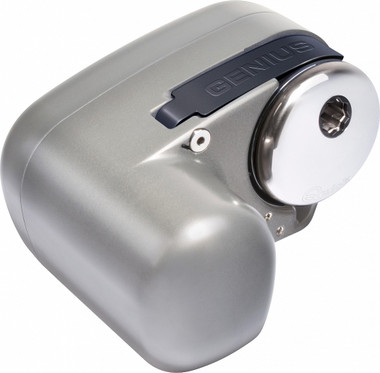

Quick Genius - GP2 Horizontal Windlasses - Quote Only

• Horizontal on-deck windlasses
• Anodized alluminium in hard oxide base
• White composite material base (GP2 500)
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Available with manual Free-Fall system (GP2 500 only manual)
• Supplied with pressure lever
• IP66 watertight motor
• Epicyclical gearbox (GP2 1500-2000)

For boats from 6 to 12 meters (20 - 39 ft)

GP2 FF - Automatic Free-Fall System
The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button the windlass will release its clutch and the gypsy will freewheel. To stop the Free-Fall depress the up control button on the windlass; the clutch will engage stopping the gypsy and allowing retrieval of the chain.

Gypsy and Drum Ø 105 mm / 4" 9/64

	6mm		7mm - 1/4"				8mm		5/16"
	6mm	6mm	7mm	7mm	1/4"	1/4"	8mm	8mm	5/16"
	DIN 766	ISO	DIN 766	ISO	G4	BBB	DIN 766	ISO	G4
	1/2" (12,7mm)

Supplied accessories standard



Contactor units	Nylon handle
Models T6411-12 T6415-12  T6415-24 GP2 500 12 V     GP2 1200 12 V     GP2 1500   12 V   GP2 2000   12 V 24 V

Optional accessories

Platform for GP2 1500 - 2000 (H 40 mm)



Hydraulic magnetic circuit breaker	UP/DOWN control board	Foot Switches	handheld remote control	Chain counters	Radio remote control
