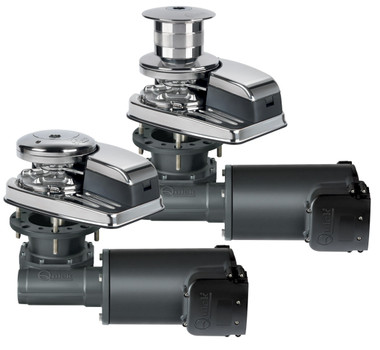

Quick Dylan - DR4 Vertical Windlasses - Quote Only
Hover over image to zoom
Product Description
- Vertical windlasses
- Base in stainless steel AISI316 and anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for
chain counter - Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor (1500-1700W)
- IP66 watertight motor (2000W)>
- Anodized aluminium gearbox
| Dylan 1500 W | DC | 10 - 16 m | 33 - 53 ft |
| Dylan 1700 W | DC | 14 - 18 m | 46 - 59 ft |
| Dylan 2000 W | DC | 15 - 20 m | 49 - 66 ft |
| Dylan 3000 W | AC | 15 - 20 m | 49 - 66 ft |
| Dylan HYDRO | 15 - 20 m | 49 - 66 ft |
The indication may vary according to the boat type and the anchor-rode type
Gypsy and Drum Ø 142 mm / 5" 19/32
|
|
10mm - 3/8" |
12mm/13mm |
||||
|
|
10mm |
10mm |
3/8" |
13mm |
12mm |
7/16" |
|
DIN 766 |
ISO |
G4 |
DIN 766 |
ISO |
G4 |
|
|
|
5/8" - 3/4" |
3/4" |
||||
Supplied accessories standard
Contactor units
| MODELS | T6315-12 | T6315-24 |
| 1500 W | 12 V | |
| 1700 W | 12 V | 24 V |
| 2000 W | 24 V |
Technopolymer handle
Optional accessories
 |
 |
  |
 |
  |
| Hydraulic magnetic circuit breaker |
UP/DOWN Switches | handheld remote control |
Chain counters |
Radio remote control |
 |
 |
|||
| UP/DOWN Control board |
Proportional control |
| Available Models | |
| DYLAN DR4 1500W | |
| FSDR15120010A00 | Quick Dylan DR4 1512 WINDLASS 1500W 12V 10mm |
| FSDR15120012A00 | Quick Dylan DR4 1512 Vertical Windlass 1500W 12V 12/13mm |
| FSDR1512D010A00 | Quick Dylan DR4 1512D WINDLASS 1500W 12V 10mm - 3/8" DRUM |
| FSDR1512D012A00 | Quick Dylan DR4 1512D WINDLASS 1500W 12V 12/13mm - 7/16" DRUM |
| FSDR15240010A00 | Quick Dylan DR4 1524 WINDLASS 1500W 24V 10mm - 3/8" |
| FSDR15240012A00 | Quick Dylan DR4 1524 WINDLASS 1500W 24V 12/13mm |
| DYLAN DR4 1700W | |
| FSDR17120010A00 | Quick Dylan DR4 1712 Vertical Windlass 1700W 12V 10mm |
| FSDR17120012A00 | DR4 1712 WINDLASS 1700W 12V 12/13mm |
| FSDR1712D010A00 | Quick Dylan DR4 1712D Vertical Windlass 1700W 12V 10mm with Capstan |
| FSDR1712D012A00 | DR4 1712D WINDLASS 1700W 12V 12/13mm D |
| FSDR17240010A00 | DR4 1724 WINDLASS 1700W 24V 10mm |
| FSDR17240012A00 | DR4 1724 WINDLASS 1700W 24V 12/13mm |
| FSDR1724D010A00 | DR4 1724D WINDLASS 1700W 24V 10mm D |
| FSDR1724D012A00 | DR4 1724D WINDLASS 1700W 24V 12mm-13mm D |
| DYLAN DR4 2000W | |
| FSDR20240010A00 | DR4 2024 WINDLASS 2000W 24V 10mm |
| FSDR20240012A00 | DR4 2024 WINDLASS 2000W 24V 12mm |
| FSDR2024D010A00 | DR4 2024D WINDLASS 2000W 24V 10mm D |
| FSDR2024D012A00 | DR4 2024D WINDLASS 2000W 24V 12mm D |
