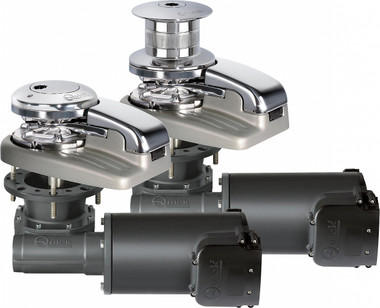

Quick Dylan H - DH4 Vertical Windlasses - Quote Only

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Quick
$0.00

 Product Description

  • Vertical windlasses
  • Base in anodized aluminium in hard oxide
  • with and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for
    chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor (1500-1700W)
  • IP66 watertight motor (2000W)
  • Anodized aluminium gearbox
For boats from 10 to 20 meters (33 - 66 ft)
DH4 1500 W 10 - 16 m 33 - 53 ft
DH4 1700 W 12/24 V 14 - 18 m 46 - 59 ft
DH4 2000 W 24 V - 230/400 VAC 15 - 20 m 49 - 66 ft
DH4 HYDRO 15 - 20 m 49 - 66 ft

The indication may vary according to the boat type and the anchor-rode type





Gypsy and DrumØ 142 mm / 5" 19/32



10mm - 3/8"

12mm/13mm

10mm

10mm

3/8"

13mm

12mm

7/16"

DIN 766

ISO

G4

DIN 766

ISO

G4

5/8" - 3/4"

3/4"

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick®"
