Quick Aleph AL3 Vertical Windlasses - Quote Only

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Quick
$0.00

 Product Description

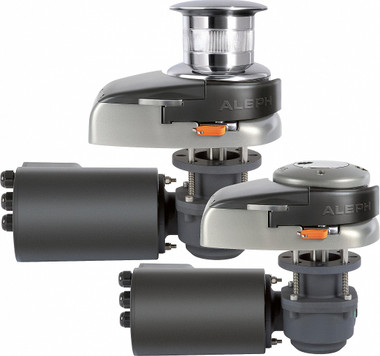

The AL3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.



8mm - 1/4"

10mm - 3/8"

8mm

8mm

5/16"

5/16"

10mm

10mm

3/8"

DIN 766

ISO

G4

BBB

DIN 766

ISO

G4

1/2" - 9/16" - 5/8"

5/8"

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick” system.

Aleph 700 W 7 – 10 m 23 – 33 ft
Aleph 1000 W 10 – 14 m 33 – 46 ft
Aleph 1500 W 12 – 15 m 39 – 49 ft



Supplied accessories standard

Solenoid Units

MODELS T6315-12 T6315-24
700 W 12 V 12 V
1000 W 12 V 24 V
1500 W 12 V 24 V





      Available Models
FSAL07120008A00 AL3 712 WINDLASS 700W 12V 08mm - 5/16"
FSAL07120010A00 AL3 712 WINDLASS 700W 12V 10mm - 3/8"
FSAL0712D008A00 AL3 712D WINDLASS 700W 12V 08mm - 5/16" DRUM
FSAL0712D010A00 AL3 712D WINDLASS 700W 12V 10mm - 3/8" DRUM
FSAL07240008A00 AL3 724 WINDLASS 700W 24V 08mm - 5/16"
FSAL07240010A00 AL3 724 WINDLASS 700W 24V 10mm - 3/8"
FSAL0724D008A00 AL3 724D WINDLASS 700W 24V 08mm - 5/16" DRUM
FSAL0724D010A00 AL3 724D WINDLASS 700W 24V 10mm - 3/8" DRUM
FSAL10120008A00 AL3 1012 WINDLASS 1000W 12V 08mm - 5/16"
FSAL10120008B00 AL3 P 1012 WINDLASS 1000W 12V 08mm - 5/16"
FSAL10120010A00 AL3 1012 WINDLASS 1000W 12V 10mm - 3/8"
FSAL10120010B00 AL3 P 1012 WINDLASS 1000W 12V 10mm - 3/8"
FSAL1012D008B00 AL3 P 1012D WINDLASS 1000W 12V 08mm - 5/16" DRUM B00
FSAL1012D008A00 AL3 1012D WINDLASS 1000W 12V 08mm - 5/16" DRUM
FSAL1012D010B00 AL3 P 1012D WINDLASS 1000W 12V 10mm - 3/8" DRUM B00
FSAL1012D010A00 AL3 1012D WINDLASS 1000W 12V 10mm - 3/8" DRUM
FSAL10240008A00 AL3 1024 WINDLASS 1000W 24V 08mm - 5/16"
FSAL10240010A00 AL3 1024 WINDLASS 1000W 24V 10mm - 3/8"
FSAL1024D008A00 AL3 1024D WINDLASS 1000W 24V 08mm - 5/16" DRUM
FSAL1024D010A00 AL3 1024D WINDLASS 1000W 24V 10mm - 3/8" DRUM
FSAL15120008A00 AL3 1512 WINDLASS 1500W 12V 08mm - 5/16"
FSAL15120010A00 AL3 1512 WINDLASS 1500W 12V 10mm - 3/8"
FSAL1512D008A00 AL3 1512D WINDLASS 1500W 12V 08mm - 5/16" DRUM
FSAL1512D010A00 AL3 1512D WINDLASS 1500W 12V 10mm - 3/8" DRUM
FSAL15240008A00 AL3 1524 WINDLASS 1500W 24V 08mm - 5/16"
FSAL15240010A00 AL3 1524 WINDLASS 1500W 24V 10mm - 3/8"
FSAL1524D008A00 AL3 1524D WINDLASS 1500W 24V 08mm - 5/16" DRUM
FSAL1524D010A00 AL3 1524D WINDLASS 1500W 24V 10mm - 3/8" DRUM
FSAL15480008A00 AL3 1548 WINDLASS 1500W 48V 08mm
