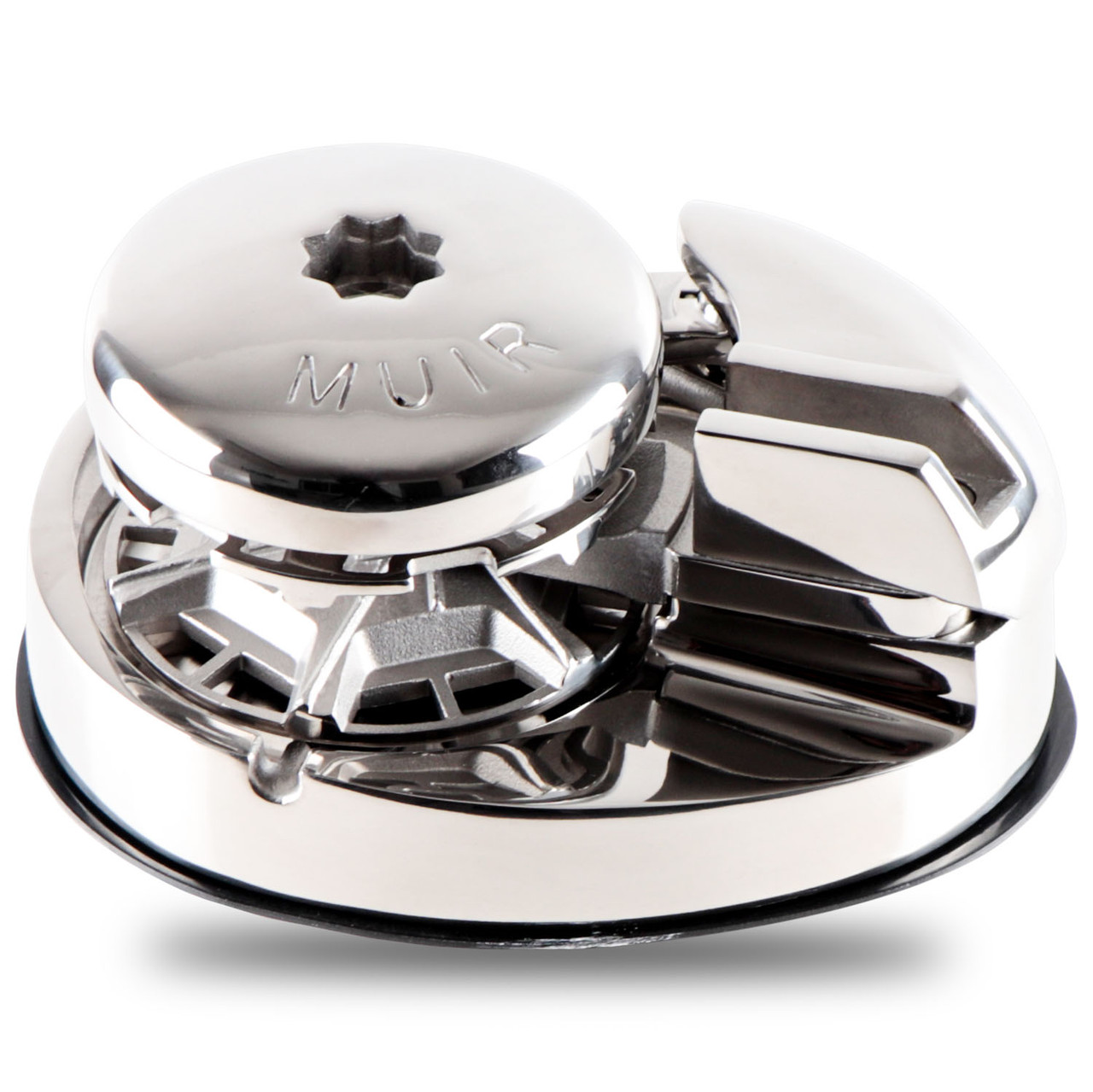

Muir Storm VR600 Vertical Windlasses - Quote Only
Hover over image to zoom
Product Description
Storm VR/VRC 600 provides the strength of conventional vertical windlasses but with advanced and innovative concepts. Recognized for their sleek curved lines, Storms are available in low profile (VR) or capstan (VRC) configurations. This provides the highest level of security and safety, whilst enhancing the foredeck of the most luxurious vessel.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
Included in the package:
Circuit Breaker & Mounting Pannel
Rocker Switch
Deck mounting studs & fasteners
Clutch release handle small
Reversing Solenoid kit
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 5-9m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
80A (12V) |
| Motor (Watts) | 550Watts |
| Amps Workload | 75A/40A (12/24V) |
| Max Load | 369Kg |
| Workload | 124Kg |
| Max Line Speed | 25m/min |
| Compatible Chain Sizes | 6 mm (1/4“), 7 mm (7/25") |
| Compatible Rope Sizes |
6mm (1/4″), 12mm (1/2″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 12Kg |
| Manual Operation | N/A |
