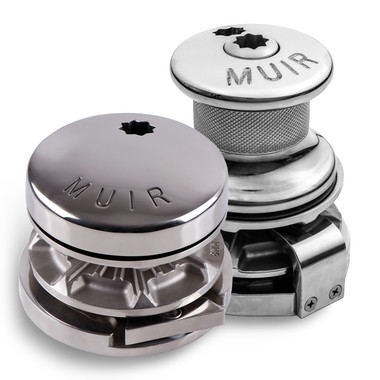

Muir Manual Vertical Windlasses VM/VMC500 - Quote Only

Not everyone needs or wants power, so the Manual Vertical series is designed with those in mind. Suited for vessels up to 12m, the above deck installation is fast and straightforward. The manual series is available in a round base configuration (VM500). Featuring an independent low-profile top or capstan and gypsy. The units can also be mounted horizontally in the anchor locker or used as an auxiliary units for line hauling or fishing use.
The low profile, lightweight, compact design makes this unit ideal for the racing enthusiast who cannot afford the weight or space of a powered windlass or for those doing serious ocean cruising or racing who can’t afford to rely on battery power.
Precision-engineered, allowing for efficient hauling. The ratchet manual operation system is operated with a standard sheet winch handle and manually released with the same handle.

Features

• Independent gypsy and capstan operation



Included in the package:

Clutch release handle

Deck mounting studs & fasteners

Installation/Operation booklet





Technical Specifications

Name	Specifications
Recommended Vessel Length	6-12m
Power Supply Options	Manual
Max Load	227Kg
Compatible Chain Sizes	6 mm (1/4“), 8 mm (5/16“), 10 mm (3/8”)
Compatible Rope Sizes	12mm (1/2″), 14mm (9/16″), 16mm (5/8″)
Auto Anchor Compatible	No
Net Weight DC	5.5Kg



Click here for the manual

Click here for the deck template
