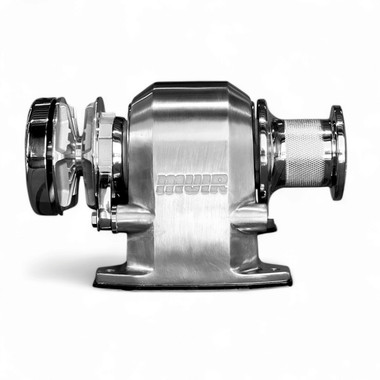

Muir HR1200 Stainless Steel Horizontal Windlasses - Quote Only
Hover over image to zoom
muir
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Product Description
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Gypsy lock/pawl
- Chain pipe & peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Included in the package:
Circuit Breaker & Mounting Pannel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs & fasteners
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 8-12m |
| Power Supply Options | DC 12V, DC 24V |
| Recommended Muir Circuit Breaker |
80A/80A (12/24V) |
| Motor (Watts) | 800Watts |
| Amps Workload | 75A/40A (12/24V) |
| Max Load | 500Kg |
| Workload | 166Kg |
| Max Line Speed | 26m/min |
| Compatible Chain Sizes | 6 mm (1/4“), 8 mm (5/16“), 10 mm (3/8”) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 25Kg |
| Net Weight Hydraulic | 24Kg |
| Manual Operation | MORS (std) |
