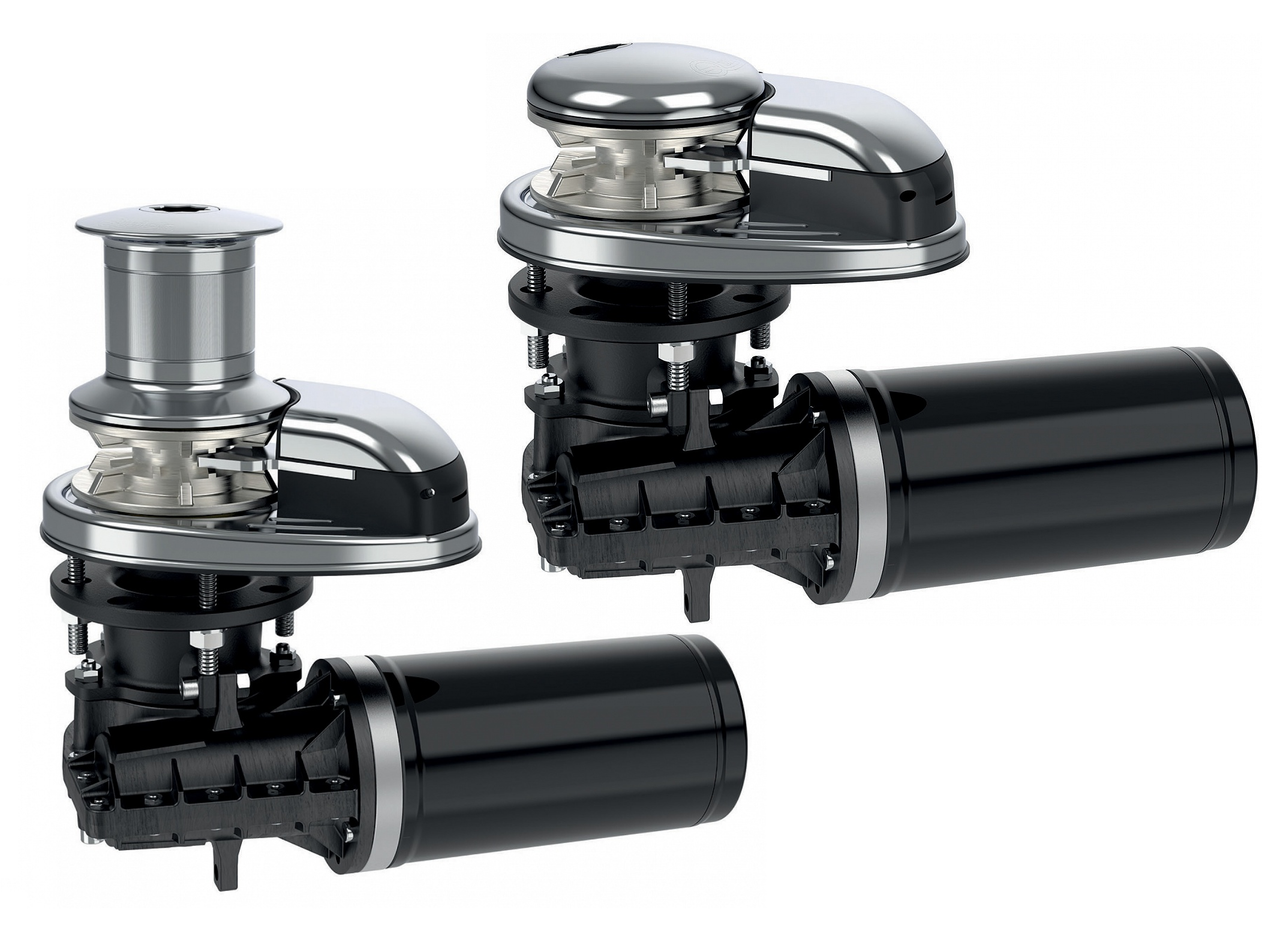

Quick Prince - DP1 Vertical Windlasses - Quote Only
Hover over image to zoom
Product Description
- Vertical windlasses
- Aisi 36 Stainless steel base and anodized aluminium in hard oxide
- With and without drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Inspection cover
- IP66 Watertight motor
- Technopolymer gearbox
| DP1 | 300 W 12V | 5 - 7,5 m | 16 - 25 ft |
| DP1 | 500 W 12V | 5 - 8,5 m | 16 - 28 ft |
| DP1 | 500 W 24V | 5 - 8,5 m | 16 - 28 ft |
| DP1 | 500 W HS 12V | 5 - 7,5 m | 16 - 25 ft |
| DP1 | 500 W HS 24V | 5 - 8,5 m | 16 - 28 ft |
The indication may vary according to the boat type and the anchor-rode type
Gypsy and Drum Ø 90 mm / 3" 35/64
|
|
6mm |
1/4" |
|
|
|
6mm |
6mm |
1/4" |
|
DIN 766 |
ISO |
BBB |
|
|
|
|
||
Supplied accessories standard
Contactor units
| MODELS | T6415-12 | T6415-24 |
| 300 W | 12 V | |
| 500 W | 12 V | 24 V |
| 500 W HiSpeed | 12 V | 24 V |
Nylon handle
Optional accessories
Hydraulic magnetic
circuit breaker
circuit breaker
Foot Switches
Handheld
remote control
remote control
Chain
counters
counters
Radio remote
control
control
UP/DOWN
Control Board
Control Board
| Available Models | |
| FSDP10312006A00 | DP1 312 WINDLASS 300W 12V 06mm |
| FSDP10312006B00 | DP1 P 312 WINDLASS 300W 12V 06mm |
| FSDP10312007A00 | DP1 312 WINDLASS 300W 12V 1/4" |
| FSDP10512D06A00 | DP1 512D WINDLASS 500W 12V 06mm DRUM |
