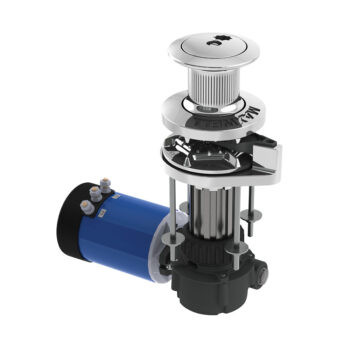

Maxwell VW10 Series - Vertical Rope/Chain Windlass - Free Quotation
Hover over image to zoom
Product Description
VW10 does NOT have a chainpipe leading into the anchor locker, making it suitable for specialized applications (i.e. for feeding rope and chain into deck mounted or seperated anchor lockers, or for horizontal installation inside anchor lockers etc). Suitable for 8-10mm (5/16-3/8″) chain and 14-16mm (9/16″-5/8″) nylon rope and most commonly used on launches and yachts from 30-50′. The VW10 automatic rope/chain anchor winch is Maxwell’s upper mid-range model of the vertical RC Series Windlass range. *for product dimensions and further information see the manuals section.
| Specifications | VW10-8 | VW10-10 |
|---|---|---|
| Maximum Pull | 700kg (1540lbs) | 850kg (1870lbs) |
| Static Hold | 1500kg (3300lbs) | 1500kg (3300lbs) |
| Chain Short Link | 8mm (5/16″) | 10mm (3/8″) |
| Rope Size (8 plait) | 14mm-16mm (9/16″- 5/8″) | 16mm (5/8″) |
| Chain Speed (Normal working load) | 24m/min (79ft/min) | 24m/min (79ft/min) |
| Rope Speed (Normal working load) | 20m/min (65ft/min) | 20m/min (65ft/min) |
| Power Supply (DC) | 12V or 24V | 12V or 24V |
| Motor Power | 1000W | 1200W |
Click here for the Manual download
