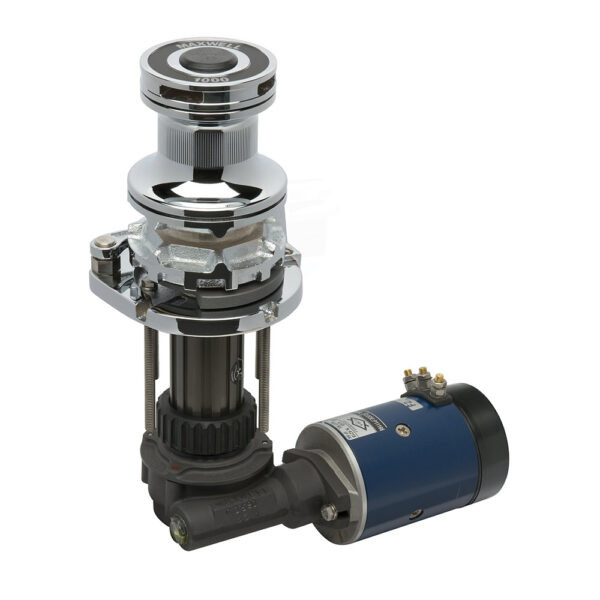

Maxwell VW 1000 Series - Vertical Windlass - Free Quotation
Hover over image to zoom
Product Description
The VW 1000 series is designed for automatic handling of chain-only anchor rode's while offering an independent capstan for the retrieval of a secondary rope and/or chain rode, or to assist with docking procedures.
The VW 1000 series is a classic style windlass with a chain-only gypsy that can be mounted vertically or horizontally (as there is no chain pipe to prevent horizontal mounting).
- Permits use of traditional shackle and thimble rope and chain connection
- Allows alternative mounting horizontally on a fore and aft bulkhead inside chain locker for below deck installation
- High-quality finish on above deck components, manufactured from marine grade stainless steel (AISI 316) and chromed bronze, for long term durability
- Cone type brake/clutch mechanism permits manual ‘Free Fall’ anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe operator control
- Simplified through deck installation by modular design
- Anodized aluminum gearbox and spacer on 500, 1000 and 1500 models
- Heavy duty, dual direction Cima motor, designed for marine winches
- Easily disassembled for servicing
| Model | 1000 Series |
| Maximum Pull | 700 kg (1540 lbs) |
| Static Hold | 1500 kg (3300 lbs) |
| Chain size | 6-10 mm (1/4” – 3/8”) |
| Line Speed (Normal Working) | 18m/min (60ft/min) |
| Power Supply (DC) | 12V, 24V, 48V |
| Motor (Watt) | 1000 W |
| Net Weight (DC) | 24 kg (52 lbs) |
| Hydraulic Pressure | 100 bar (1450 psi) |
| Hydraulic Flow | 20 l/min (5.3 US gal/min) |
| Net Weight (Hydraulic) | 17 kg (37 lbs) |
Click Here for the Owner’s Manual.
|
Minimum Advertised Price |
|||
|
VW100012V100 |
|
VW 1000 12v 3/8" HT or PC chain |
$2,829.75 |
|
VW100012V105 |
 |
VW 1000 12v 5/16" HT or 3B chain |
$2,829.75 |
|
VW100012V111 |
|
VW 1000 12v 1/4" HT chain |
$2,829.75 |
|
VW100012V114 |
|
VW 1000 12v 3/8" 3B chain |
$2,829.75 |
|
VW100024V100 |
|
VW 1000 24v 3/8" HT or PC chain |
$$2,906.25 |
|
VW100024V105 |
|
VW 1000 24v 5/16" HT or 3B chain |
$2,906.25 |
|
VW100024V111 |
|
VW 1000 24v 1/4" HT chain |
$2,906.25 |
|
VW100024V114 |
|
VW 1000 24v 3/8" 3B chain |
$2,906.25 |
|
VW1000HYD100 |
|
VW 1000 HYD 3/8" HT or PC chain |
$3,132.00 |
|
VW1000HYD105 |
|
VW 1000 HYD 5/16" HT or 3B chain |
$3,132.00 |
|
VW1000HYD114 |
|
VW 1000 HYD 3/8" 3B chain |
$3,132.00 |
|
VW1000HYDV111 |
|
VW 1000 HYD 1/4" HT chain |
$3,132.00 |
|
Please Request a quotation for the best pricing. We also offer price matching.
|
|||
