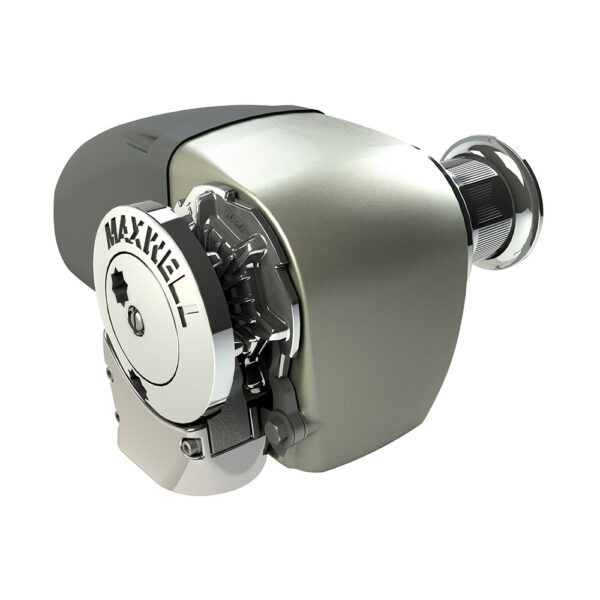

Maxwell HRC10 Series - Horizontal Rope/Chain Windlass - Free Quotation
Hover over image to zoom
Product Description
The HRC10 Horizontal Series windlasses is the largest horizontal rope/chain windlass in Maxwell’s Power & Sail range and is designed to effortlessly retrieve and deploy 8mm – 10mm (5/16” – 3/8”) short link chain and 14mm – 16mm (9/16” – 5/8”) 8-braid (plait) rope.
The HRC10 windlass comes in a variety of configurations and utilizes Maxwell’s patented Wave Design™ rope/chain technology. The HRC10 is the perfect solution for those wanting their anchoring system above-deck or for those unable to achieve the minimum required space in their anchor locker.
The HRC10 has been in global circulation since its initial release in 2011 and has maintained a stellar reputation for durability and longevity.
| Model | HRC10-8 (8 mm - 5/16”) | HRC10-10 (10 mm – 3/8”) |
|---|---|---|
| Maximum Pull | 700 kg (1540 lbs) | 850 kg (1870 lbs) |
| Static Hold | 1500 kg (3300 lbs) | 1500 kg (3300 lbs) |
| Chain Short Link | 8 mm (5/16”) | 10 mm (3/8”) |
| Rope Size | 14 – 16 mm (9/16 - 5/8”) | 16 mm (5/8”) |
| Chain Speed (Anchor Retrieval) | 24 m/min (79 ft/min) | 24 m/min (79 ft/min) |
| Rope Speed (Anchor Retrieval) | 20 m/min (65 ft/min) | 20 m/min (65 ft/min) |
| Power Supply (DC) | 12V, 24V, 48V | 12V, 24V, 48V |
| Motor (Watt) | 1000 W | 1200 W |
| Net Weight (DC) | 19 kg (42 lbs) | 20 kg (44 lbs) |
| Hydraulic Pressure | 138 bar (2000 psi) | 138 bar (2000 psi) |
| Hydraulic Flow | 20 l/min (5.3 US gal/min) | 20 l/min (5.3 US gal/min) |
| New Weight (Hydraulic) | 13 kg (28 1/2 lbs) | 13 kg (28 1/2 lbs) |
Click here to see the Owner’s Manual
