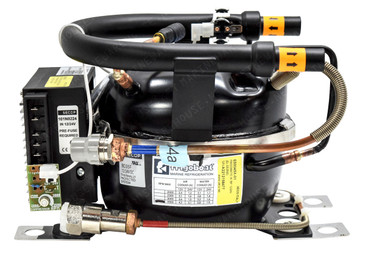

Frigoboat W35F Water-Cooled Marine Refrigeration System 12/24V

The Frigoboat W35F is a high-performance water-cooled marine refrigeration system designed for sailboats, yachts, and offshore vessels requiring reliable refrigeration and freezer capabilities. Built around the proven Secop/Danfoss BD35 compressor platform, the W35F delivers exceptional cooling efficiency while minimizing power consumption through its seawater-cooled condenser system.

Ideal for custom refrigeration boxes and freezer compartments, the W35F is compatible with a range of Frigoboat evaporators and can support refrigerator compartments up to 340 liters and freezer applications up to 110 liters, depending on evaporator selection and operating conditions.

Key Features

• Efficient water-cooled marine refrigeration system
• Operates on 12V or 24V DC power
• Proven Secop/Danfoss BD35 compressor technology
• Pre-charged refrigerant circuit with quick-connect fittings
• Automatic low-voltage battery protection
• Compatible with multiple Frigoboat evaporator options
• Quiet self-priming seawater pump operation

Technical Specifications

• Voltage: 12/24V DC
• Compressor: Secop/Danfoss BD35
• Refrigerant: R134a
• Cooling Method: Water-cooled condenser with pump
