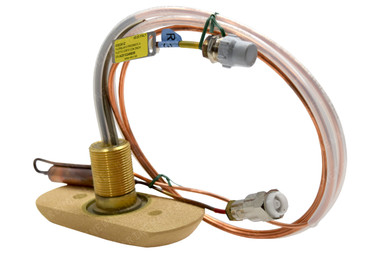

Frigoboat Keel Cooler With Zincs 2-1/4" Threaded Shaft for Marine Refrigeration

The Frigoboat Keel Cooler with zinc anodes included and a 2-1/4" threaded shaft is designed for thinner hull installations requiring efficient seawater cooling and built-in corrosion protection. The integrated zincs help protect the cooler from galvanic corrosion, extending service life in harsh marine environments.

Both keel cooler models are available with or without sacrificial zincs. Zincs are installed on the keel cooler itself, flush with the surface. If the keel cooler is already connected electrically to the boat’s sacrificial zinc, then the zincs are not needed, while if the boat does not have a bonding system it would be advisable to use a keel cooler with zincs.

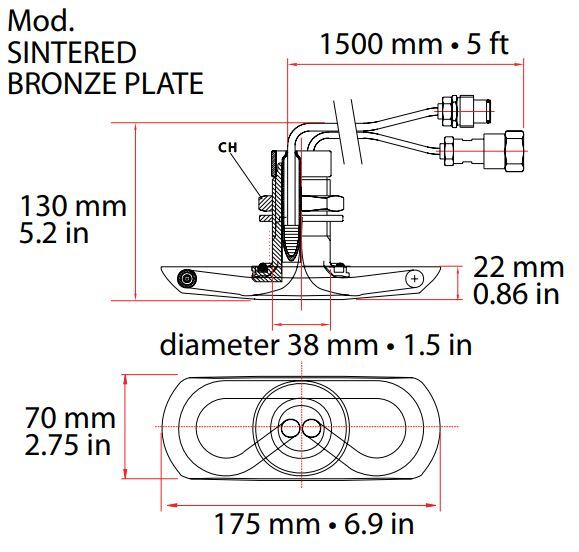

Specifications

• Type: Keel Cooler Condenser
• Threaded Shaft Length: 2-1/4" (57 mm)
• Construction: Marine-grade bronze
• Cooling Method: Direct seawater heat exchange
• Zinc Anodes Included: Yes
• Installation: Through-hull mounting
• Compatible Systems: Frigoboat keel-cooled refrigeration systems
• Corrosion Protection: Sacrificial zinc anodes included
• Application: Marine refrigerators and freezers
• Suitable Hull Thickness: Thin to medium hull installations

Additional Features

• Built-in corrosion protection
• Energy-efficient cooling
• Quiet operation
• No fan or pump required
• Long service life

CATALOGUE

INSTALLATION AND MANUAL
