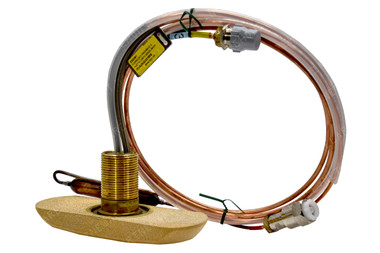

Frigoboat Keel Cooler No Zincs 2-1/4" Threaded Shaft for Marine Refrigeration

The Frigoboat Keel Cooler with a 2-1/4" threaded shaft is designed for thinner hull installations while delivering efficient heat transfer directly into seawater. This compact keel cooler improves refrigeration performance while reducing energy consumption and system complexity. Zinc anodes are not included with this model.

Both keel cooler models are available with or without sacrificial zincs. Zincs are installed on the keel cooler itself, flush with the surface. If the keel cooler is already connected electrically to the boat’s sacrificial zinc, then the zincs are not needed, while if the boat does not have a bonding system it would be advisable to use a keel cooler with zincs.

Specifications

• Type: Keel Cooler Condenser
• Threaded Shaft Length: 2-1/4" (57 mm)
• Construction: Marine-grade bronze
• Cooling Method: Direct seawater cooling
• Zinc Anodes Included: No
• Installation: Through-hull
• Compatible Systems: Frigoboat keel-cooled refrigeration units
• Application: Marine refrigeration and freezer systems
• Suitable Hull Thickness: Thin to medium hull installations
• Corrosion Resistance: Marine-grade bronze construction

Additional Features

• Compact installation profile
• Energy-efficient operation
• Quiet cooling performance
• Reduced maintenance requirements
• No cooling fan needed
