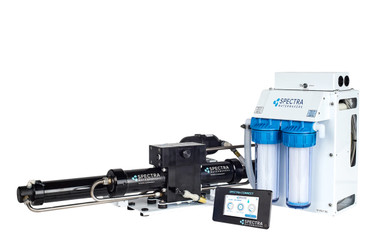

Spectra NP-400C

The Newport 400C is the pinnacle of energy efficiency, automation, and ease of use in watermakers, featuring the Spectra Connect controller as standard.  The Spectra Connect enables remote operation and monitoring, with added features like Fill Tank mode, customizable Auto Run mode, One-Touch Sensor Calibration, and suggested maintenance intervals displayed on the dashboard, eliminating the guesswork from operation and upkeep. Operating on as little as 15 watts per gallon (4 watts per liter), the Newport 400C can run on a small generator, solar, wind, or directly off the batteries. Its multi-speed capacity allows for high mode operation for maximum product flow or low mode for maximum efficiency, making it perfect for onboard power management.

Quick Facts:

• Control your Spectra Watermaker directly from your Multifunction Display (MFD)
Available for most Garmin, Raymarine and Navico/Simrad helm stations
• Completely automated with the Spectra Connect Controller
• Compact modular design
• Spectra’s unique Clark Pump ensures efficiency and reliability
• High and low speed operation for customizable power management and output volume
• Low power consumption—can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade mag drive pump with run dry protection
• Commercial grade, continuous duty motor
• Manual bypass for diversion valve
• System includes installation kit and tank full switch
• Z±ION Compatible
• Also available with additional local display

Newport 400C Electrical Specifications

NEWPORT 400C12V

• • Power Supply Voltage: 12 VDC
  • Bench Test: 13.7 V / 26 A
  • Power Consumption: 358 W
  • Efficiency: 22.1 Wh/gal

NEWPORT 400C 24V

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27 V / 13.1 A
  • Power Consumption: 357 W
  • Efficiency: 21.6 Wh/gal

NEWPORT 400C 48V

• • Power Supply Voltage: 48 VDC
  • Bench Test: 48.3 V / 7.15 A
  • Power Consumption: 345 W
  • Efficiency: 20.7 Wh/gal

NEWPORT 400C W/SHORT MEMBRANE 12V

• • Power Supply Voltage: 12 VDC
  • Bench Test: 13.6 V / 26.6 A
  • Power Consumption: 365 W
  • Efficiency: 22.8 Wh/gal

NEWPORT 400C W/SHORT MEMBRANE 24V

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27.2 V / 12.8 A
  • Power Consumption: 348 W
  • Efficiency: 21.5 Wh/gal

NEWPORT 400C W/SHORT MEMBRANE 48V

• • Power Supply Voltage: 48 VDC
  • Bench Test: 48.3 V / 7.15 A
  • Power Consumption: 345 W
  • Efficiency: 20.7 Wh/gal

Newport 400 Connect Installation and Operating Manual

Newport 400 Connect Watermaker Product Specifications

Diagram 1

Diagram 2

Diagram 3

Diagram 4
