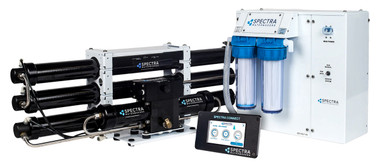

Spectra NP-1000C

The Newport 1000C is one of the most energy-efficient, automated, and easy-to-use watermakers available, featuring the Spectra Connect.  The Newport 1000C produces 41 gal (155 L) of water every hour. The Spectra Connect allows you to operate and monitor your watermaker remotely, with added features like Fill Tank mode, customizable Auto Run mode, One-Touch Sensor Calibration, and suggested maintenance intervals displayed on the dashboard, eliminating the guesswork from operation and upkeep. The Newport 1000C is available in both DC and AC voltages. These systems use motor speed control technology for quiet operation on an inverter, generator, or directly from the battery bank. The multi-speed capacity ensures optimal performance in all conditions.

Quick Facts:

• Highest output watermaker available in DC,AC
• Control your Spectra Watermaker directly from your Multifunction Display (MFD)
Available for most Garmin, Raymarine and Navico/Simrad helm stations
• Completely automated with the Spectra Connect Controller
• Compact modular design
• Spectra’s unique Clark Pump ensures efficiency and reliability
• High and low speed operation for customizable power management and output volume
• Low power consumption—can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade mag drive pump with run dry protection
• Commercial grade, continuous duty motor
• Manual bypass for diversion valve
• Z±ION Compatible
• Also available with additional local display

Newport 700C-1000C DC Electrical Specifications

NEWPORT 700C 24V

• • Power Supply Voltage: 24 V
    Bench Test: 27 V / 19.4 A
    Power Consumption: 526 W
    Efficiency: 18.5 Wh/gal

NEWPORT 1000C 24V

• • Power Supply Voltage: 24 V
  • Bench Test: 26.9 V / 26.1 A
  • Power Consumption: 706 W
  • Efficiency: 17.6 Wh/gal

NEWPORT 700C 48V

• • Power Supply Voltage: 48 V
  • Bench Test: 48.7 V / 10.7 A
  • Power Consumption: 521 W
  • Efficiency: 17.9 Wh/gal

NEWPORT 1000C 48V

• • Power Supply Voltage: 48 V
  • Bench Test: 48.7 V / 15.8 A
  • Power Consumption: 770 W
  • Efficiency: 18.5 Wh/gal

NEWPORT 700C 110V

• • Power Supply Voltage: 110 V
  • Bench Test: 121.9 V / 7.4 A
  • Power Consumption: 527 W
  • Efficiency: 18.2 Wh/gal

NEWPORT 700C 220V

• • Power Supply Voltage: 220 V
  • Bench Test: 211.9 V / 5.1 A
  • Power Consumption: 560 W
  • Efficiency: 19.4 Wh/gal

NEWPORT 1000C 110V

• • Power Supply Voltage: 110 V
  • Bench Test: 119.2 V / 13.5 A
  • Power Consumption: 1164 W
  • Efficiency: 29.5 Wh/gal

NEWPORT 1000C 220V

• • Power Supply Voltage: 220 V
  • Bench Test: 208.5 V / 7.3 A
  • Power Consumption: 813 W
  • Efficiency: 20.4 Wh/gal

Newport 700c/1000c Installation and Operating Manual

Newport 1000C Watermaker Product Specifications

Diagram 1

Diagram 2

Diagram 3

Diagram 4
