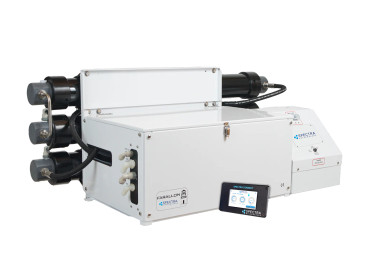

Spectra Farallon FL-2800C 220VAC

The Farallon systems are designed with Spectra’s unique Pearson Pump technology for unrivaled reliability, energy efficiency, and durability. The Spectra Connect allows you to operate and monitor your watermaker from a remote device, featuring new additions like Fill Tank mode, customizable Auto Run mode, One-Touch Sensor Calibration, and suggested maintenance intervals displayed on the dashboard. The slow-moving pumps ensure low maintenance intervals for longer, quieter, trouble-free operation. The Farallon’s variable frequency drive motor controller guarantees soft starts without massive inrush currents that could crash your generator at startup. Powered by 220 V AC, these systems bring municipal-scale desalination plant features to your fingertips.

Quick Facts:

• Control your Spectra Watermaker directly from your Multifunction Display (MFD)
Available for most Garmin, Raymarine and Navico/Simrad helm stations
• Completely automated with the Spectra Connect Controller
• Semi-modular design to allow flexible installations
• Pearson Pump technology standard
• Multiple run speeds for optimum system operation
• Highest output system rated for inverter operation
• Quiet operation
• Industrial grade motor and components
• Slow moving high pressure pump gives long service life
• Industrial grade components

Farallon Electrical Specifications

FARALLON 1800C 110V

• • Power Supply Voltage: 110 V
  • Bench Test: 120 V / 17.4 A
  • Power Consumption: 730W
  • Efficiency: 10 Wh/gal

FARALLON 1800C 220V

• • Power Supply Voltage: 220 V
  • Bench Test: 208 V / 10 A
  • Power Consumption: 1193 W
  • Efficiency: 16 Wh/gal

FARALLON 2800C 220V

• • Power Supply Voltage: 220 V
  • Bench Test: 209 V / 12.7 A
  • Power Consumption: 1553 W
  • Efficiency: 13 Wh/gal

Farallon 1800/2800C With Spectra Connect Installation and Operating Manual

Farallon 2800C Watermaker Product Specifications

Diagram 1

Diagram 2
