Series 30 Ball Bearing Orbit Block™, Triple with Cleat
Hover over image to zoom
Product Description

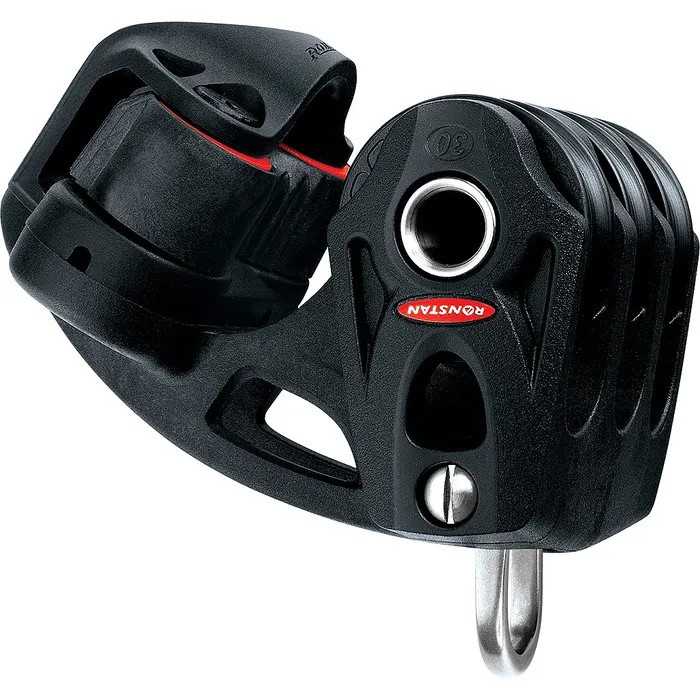

Series 30 Ball Bearing Orbit Block™, Triple with Cleat
Triple sheave block with C-Cleat™, fairlead, and non-swivel shackle head
FEATURES
High performance cleating.
Lightweight.
Highest working load in its class.
Secure, versatile attachment.
Ultra low profile thru-sheave becket.
Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
Specifications
| Max. Rope diameter (in) | 5/16 |
|---|---|
| M.W.L. (lb) | 1210 |
| Sheave diameter (in) | 1 3/16 |
| B.L. (lb) | 2430 |
| Weight (oz) | 4.6 |
| Notes: | Line load through cleat not to exceed 125kg (280lb). |
