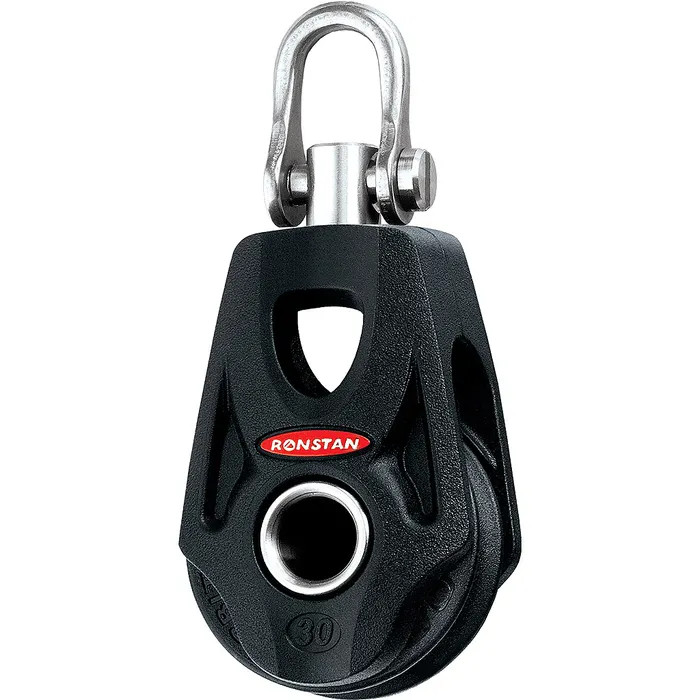

Series 30 Ball Bearing Orbit Block™, Becket and Swivel Shackle
Hover over image to zoom
Product Description
Series 30 Ball Bearing Orbit Block™, Becket and Swivel Shackle
Single sheave block with becket hub and swivel shackle head
FEATURES
Lightweight.
Highest working load in its class.
Secure, versatile attachment.
Low profile and compact.
Ultra low profile thru-sheave becket.
Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
SP versions feature a Nylatron® sheave suitable for both rope and wire
Specifications
| Pin Ø (in) | 5/32 |
|---|---|
| Max. Rope diameter (in) | 5/16 |
| M.W.L. (lb) | 660 |
| Sheave diameter (in) | 1 3/16 |
| B.L. (lb) | 1320 |
| Weight (oz) | 1.1 |
