Series 20 Ball Bearing HHL Lashing Orbit Block™
Hover over image to zoom
Product Description

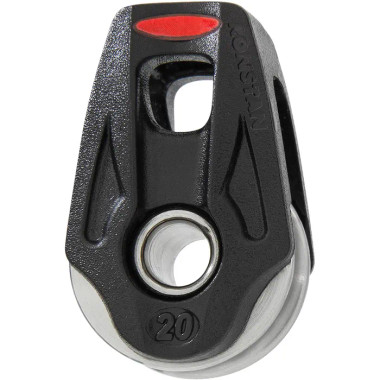

Series 20 Ball Bearing HHL Lashing Orbit Block™
Single, becket hub option, lashing, HHL
FEATURES
Suits up to 4mm (5/32”) lashing.
Supplied with 750mm (30”) x 2mm (3/32”) diameter, Dyneema® single braid lashing line.
Specifications
| Max. Rope diameter (in) | 1/4 |
|---|---|
| M.W.L. (lb) | 660 |
| Sheave diameter (in) | 3/4 |
| B.L. (lb) | 1980 |
| Weight (oz) | 0.5 |
| Notes: | Block must be lashed through hub. The supplied lashing line must have three passes through head and hub to achieve rated load. Please note DSH-2.5GRY Soft Shackle has a BL of 450kg which is lower than the RF25109HL. |
