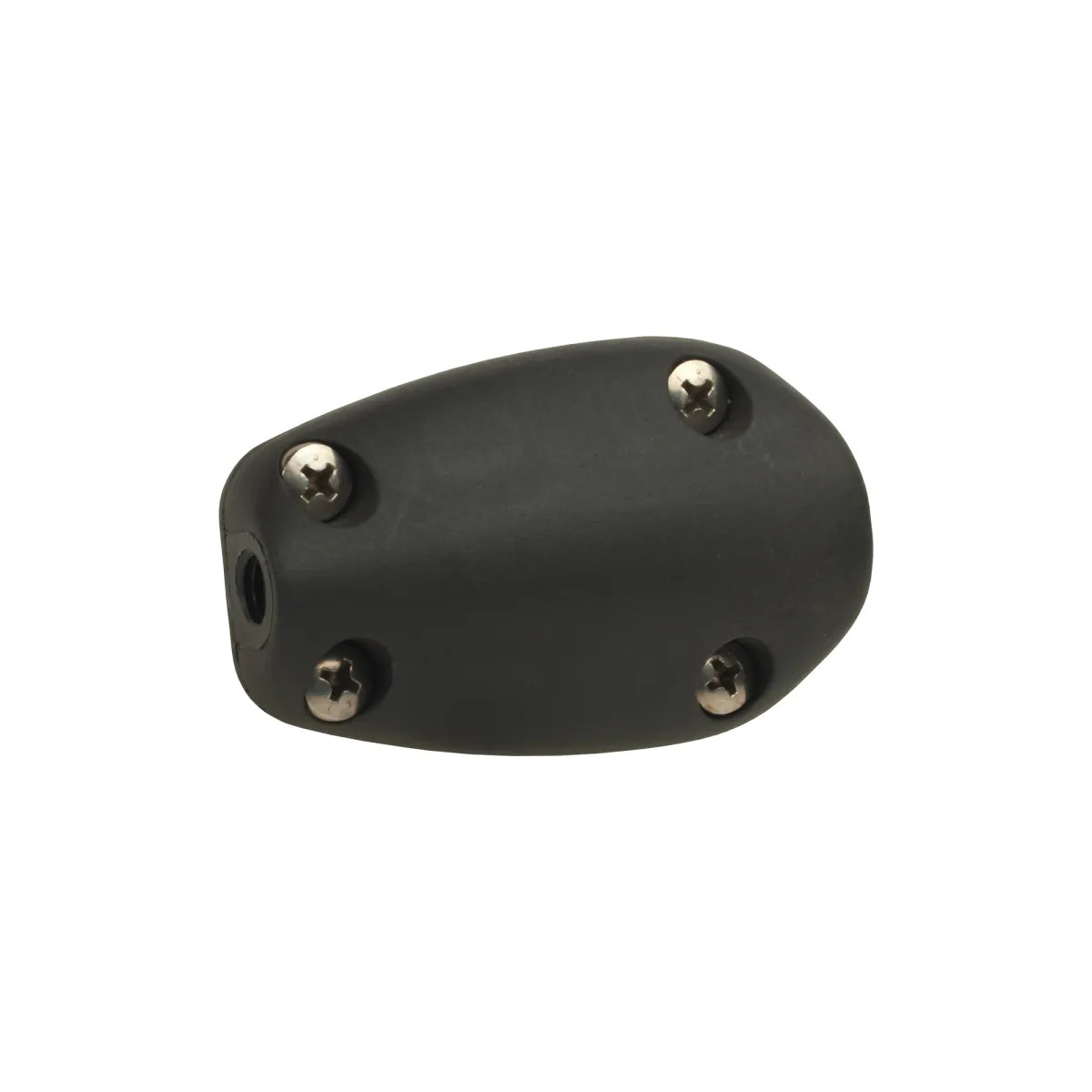

ROUND BATTEN RECEPTACLE HS 40
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
610.341
Product Description
For round batten.
For 10 mm threaded toggle.
Standard receptacles. The traditional mounting system with two screwed cheeks and the batten on one of the two sides of the sail. This batten receptacle is external with respect to the sail and can chafe on the mast. Installation is however much simpler than SBR.
Battens. Antal realizes receptacles for round and flat battens for all diameters and dimensions of the batten. All receptacles are provided with a threaded hole cap for the connection of the receptacle to the slider with joint.
Materials. Standard receptacles are realized in resin. The resin used for receptacles assures long life to these products and high resistance, in fact it is made of high strength 50% glass fibre resin with UV protection.
For 10 mm threaded toggle.
Standard receptacles. The traditional mounting system with two screwed cheeks and the batten on one of the two sides of the sail. This batten receptacle is external with respect to the sail and can chafe on the mast. Installation is however much simpler than SBR.
Battens. Antal realizes receptacles for round and flat battens for all diameters and dimensions of the batten. All receptacles are provided with a threaded hole cap for the connection of the receptacle to the slider with joint.
Materials. Standard receptacles are realized in resin. The resin used for receptacles assures long life to these products and high resistance, in fact it is made of high strength 50% glass fibre resin with UV protection.
TECHNICAL CHARACTERISTICS
|
Length (L):
|
Height (H):
|
|
80 mm
|
52 mm
|
|
Batten dimensions:
|
Weight:
|
|
Ø16 mm
|
0,06 kg
|
|
Material:
|
Fixing screws:
|
|
Resin
|
4
|
